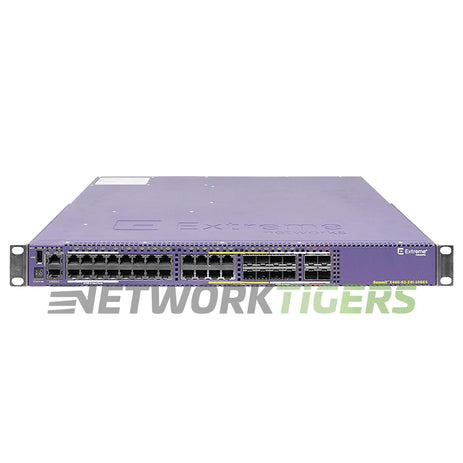

The Extreme X460-G2-24t-10GE4 Switch features a switching capacity of 296 Gbps and a forwarding rate of 220.2 Mpps. This high-performance switch includes 28 x 1GB RJ45 ports, 8 x 1GB Combo ports, and 4x 10GB SFP+ ports for versatile connectivity options in your network setup.
For optimal performance in demanding environments, the Extreme X460-G2-24t-10GE4 is designed to handle complex networking tasks with ease. Whether you need seamless integration or reliable connectivity, this switch offers the flexibility and scalability required for modern business environments.
Extreme 16701 24 10/ 100/1000BASE-T, 8 100/1000BASE-X unpopulated SFP (4 SFP ports shared with 10/100/1000BASE-T ports), 4 1000/10 GBaseX unpopulated SFP+ ports, Rear VIM Slot (unpopulated), Rear Timing Slot (unpopulated), 2 unpopulated PSU slots, fan module slot (unpopulated).
- Network Ports : 24x 1 Gigabit Ethernet RJ45
- Uplink Ports : 8x 1 Gigabit Ethernet SFP (4 SFP ports shared with 10/100/1000BASE-T ports), 4x 10 Gigabit SFP+
- Management Ports : 1x USB, 1x RJ45 Console
- Stacking Ports : Stacking possible through the use of the 16713 module which includes 2x 40GB SummitStack ports or the 16710 module (2x 40GBASE-X) - neither module is included
- Stacking Options : Up to eight X460-G2 switches can be stacked using three different methods of stacking - SummitStack, SummitStack-V or SummitStack-V160
- Stacking Cable Options : 16106 (0.5m), 16107 (1.5m), 16108 (3m), 16105 (5m) - none included
- Module Slots : 1x VIM slot (Rear of Switch), 1x Rear Timing Slot
- Module Options : 16710 (2x 40GBASE-X), 16711 (2x 10GBASE-X), 16712 (2x 10GBASE-T), 16713 (2x Extreme SummitStack), 16715 (Timing Module)
- Switch Version : ExtremeXOS
- AirFlow Direction : Depends on fan and PSU configuration - see below.
- Fan Module Options : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately - Option are 10945 (F-B) and 10946 (B-F)
- Power Supplies Included : 2x PSU Slots - unpopluated - PSU's ordered separately
- Power Supply Options : 10941 (1100W F-B), 10942 (1100W B-F), 10951 (715W F-B), 10952 (715W B-F), 10930A (300W Ext Temp), 10953 (350W F-B), 10954 (350W B-F), 10943 (300W B-F)
- Switching Capacity : 296 Gbps
- Forwarding Rate : 220.2 Mpps
- MAC Address Table Size : 96K (98,304)
- VLAN's : 4096
- DRAM and Flash : 1GB ECC DDR3 DRAM, 4GB eMMC Flash
- Model Number : 16701
- Part Number : X460-G2-24t-10-GE4-Base-Unit, X460-G2-24t-10-GE4
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme 16701 X460-G2-24t-10GE4 28x 1GB RJ45 8x 1GB Combo 4x 10GB SFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
