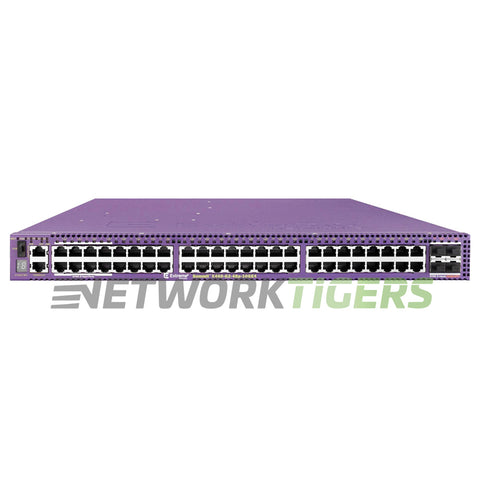

NEW Extreme 16704 X460-G2-48p-10GE4 48x 1GB RJ45 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

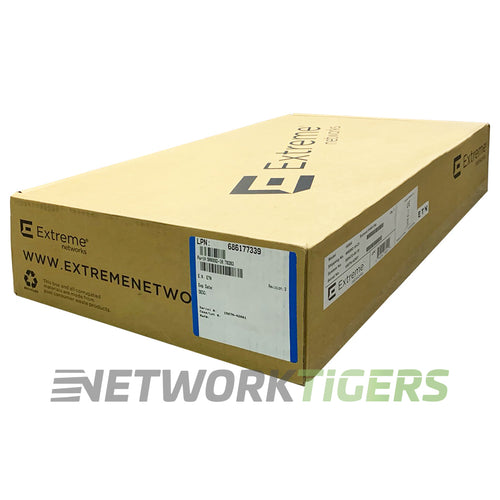

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4052

Overview

The Extreme 16704 X460-G2-48p-10GE4 switch offers high PoE budget options with either one or two power supply units. With a switching capacity of 336 Gbps and a forwarding rate of 250 Mpps, this switch is designed to handle large amounts of data efficiently.

It has a MAC Address Table Size that supports up to 96K Layer 2/MAC addresses, ensuring ample space for network devices to connect seamlessly. Including forty-eight RJ45 ports and four SFP+ ports allows for versatile connectivity options. Whether used in small businesses or larger enterprises, the Extreme X460-G2-48p-10GE4 provides reliable performance and flexibility for various networking needs.

Extreme Networks 16704: 48 10/100/1000BASE-T PoE-plus, 4 1000/ 10GBaseX unpopulated SFP+ ports, Rear VIM Slot (unpopulated), Rear Timing Slot (unpopulated), 2x unpopulated PSU slots, fan module slot (unpopulated), ExtremeXOS Advanced Edge license with EXOS Release 22.1 or greater (earlier releases include an Edge license only).


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Out of Band Management, 1x Serial Console
  • Module Slots and Options : 1x VIM slot (Rear of Switch), 1x Rear Timing Slot
  • Firmware Version : ExtremeXOS Advanced Edge license with EXOS Release 22.1 or greater (earlier releases include an Edge license only).
  • Fan Modules AirFlow Direction : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately.
  • Power Supplies Included : 2x PSU Slots - unpopluated - PSU's ordered separately.
  • PoE Budget : 850W of PoE-Plus budget with 1PSU, 1440W of PoE-Plus budget with 2 PSUs
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • Layer 2/ MAC Addresses : 96K (98,304)
  • Rack Mounts : Included (1-RU)
  • Model Number : 16704
  • Part Number : 16704, X460-G2-48p-10GE4
  • Condition : New


Included

  • One (1) NEW Extreme 16704 X460-G2-48p-10GE4 48x 1GB RJ45 4x 10GB SFP+ Switch as described above
