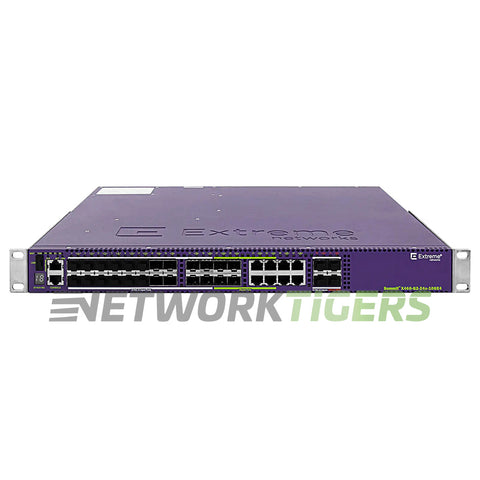

NEW Extreme 16705 X460-G2-24x-10GE4 24x 1GB SFP 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3772
UPC: 644728167050

Overview

The NEW Extreme 16705 X460-G2-24x-10GE4 Switch features a switching capacity of 296 Gbps and a forwarding rate of 220.2 Mpps, making it suitable for high-performance networking environments.

With its MAC Address Table Size supporting up to 98,304 Layer addresses, this switch offers ample storage for network devices' unique identifiers. The device is equipped with twenty-four SFP ports capable of delivering Gigabit Ethernet speeds and four additional SFP+ ports that support higher bandwidth applications at speeds up to 10GB.

Designed for efficiency and reliability in data center or enterprise networks, the Extreme X460-G2-24x-Switch provides seamless connectivity while integrating seamlessly into existing infrastructures without compromising performance. The reliable components ensure consistent operation in demanding structural installations.

NEW Extreme 16705 X460-G2-24x-10GE4 24x 1GB SFP 4x 10GB SFP+ Switch


Specifications

  • Network Ports : 8x 1 Gigabit Ethernet RJ45 (4x Gigabit Ethernet RJ45 ports shared with SFP ports)
  • Uplink Ports : 24x 1 Gigabit Ethernet SFP, 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Out of Band Management, 1x Serial Console

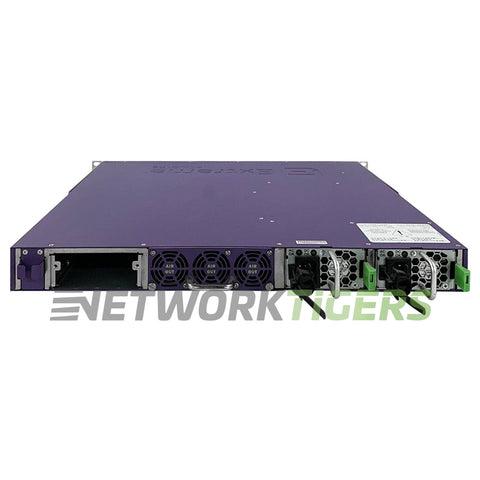

  • Module Slots : 1x VIM slot (Rear of Switch), 1x Rear Timing Slot
  • Switch Version : ExtremeXOS Advanced Edge license with EXOS Release 22.1 or greater (earlier releases include an Edge license only).
  • Fan Module Options : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately.
  • Power Supplies Included : 2x PSU Slots - unpopluated - PSU's ordered separately.
  • Switching Capacity : 296 Gbps
  • Forwarding Rate : 220.2 Mpps
  • Layer 2/ MAC Addresses : 96K (98,304)
  • Model Number : 16705
  • Part Number : 16705, X460-G2-24x-10GE4
  • Condition : New


Included

  • One (1) NEW Extreme 16705 X460-G2-24x-10GE4 24x 1GB SFP 4x 10GB SFP+ Switch as described above
