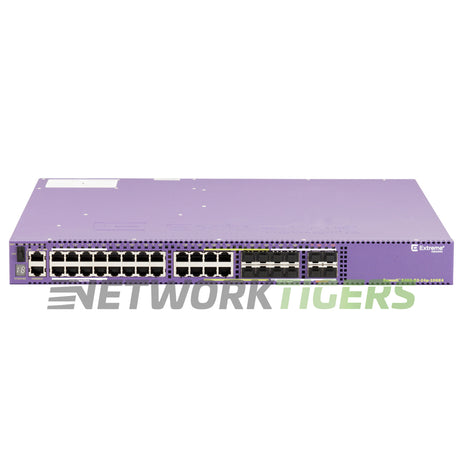

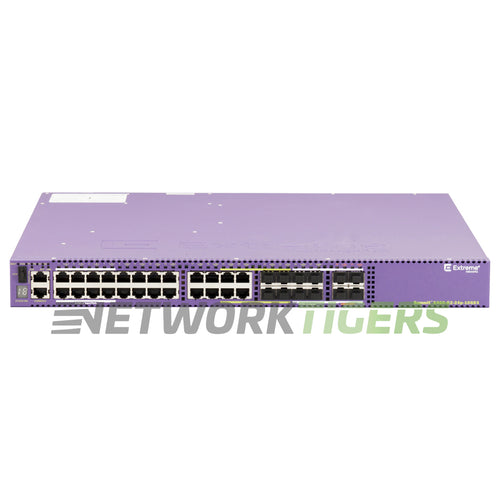

The Extreme 16718 X460-G2-24p-GE4 is a reliable and advanced switch designed for high-performance network environments. It features 24x Gigabit Ethernet PoE RJ-45 ports, allowing you to power your devices through the network cable.
With its impressive switching capacity of 224 Gbps and forwarding rate of up to 166.7 Mpps, this switch ensures fast data transfer without reducing performance. The MAC Address Table Size can handle up to Layer 2/MAC addresses: 96K (98,304).
Equipped with eight SFP slots, the X460-G2 offers flexible connectivity options for fiber optic cables or other networking accessories.
Extreme 16718: 24x 10/100/1000BASE-T PoE-plus, 8x 100/1000BASE-X unpopulated SFP (4x SFP ports shared with 10/100/1000BASE-T ports), 4x 1GBaseX unpopulated SFP ports, Rear VIM Slot (unpopulated), Rear Timing Slot (unpopulated), 2x unpopulated PSU slots, fan module slot (unpopulated), ExtremeXOS Advanced Edge license with EXOS Release 22.1or more excellent (earlier releases include an Edge license only).
- Network Ports : 24x 1 Gigabit Ethernet PoE RJ-45
- Uplink Ports : 8x 1 Gigabit Ethernet SFP (4x SFP ports shared with 10/ 100/ 1000BASE-T ports)
- Management Ports : 1x Serial Console, 1x USB, 1x Out of Band Management
- Module Slots : 1x Rear VIM Slot (unpopulated) 1x Rear Timing Slot (unpopulated)
- Switch Version : ExtremeXOS Advanced Edge license with EXOS Release 22.1or greater (earlier releases include an Edge license only).
- Fan Module Options : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately.
- Power Supplies Included : 2x PSU Slots - PSU's ordered separately
- CPU : 64-bit MIPS Processor, 1GHz Clock
- Switching Capacity : 224 Gbps
- Forwarding Rate : 166.7 Mpps
- Layer 2/ MAC Addresses : 96K (98,304)
- Packet Buffer : 4MB
- DRAM and Flash : 1GB ECC DDR3 DRAM, 4GB eMMC Flash
- Model Number : 16718
- Part Number : 16718, X460-G2-24p-GE4
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme 16718 X460-G2-24p-GE4 24x 1GB PoE RJ-45 8x 1GB SFP 1x VIM Slot Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Cord Not Included
- Power Supplies Not Included
- Fan Modules Not Included
- Transceiver Modules Not Included
- Network Modules Not Included
