NEW Extreme 16757 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch

Ask for quote

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-3362

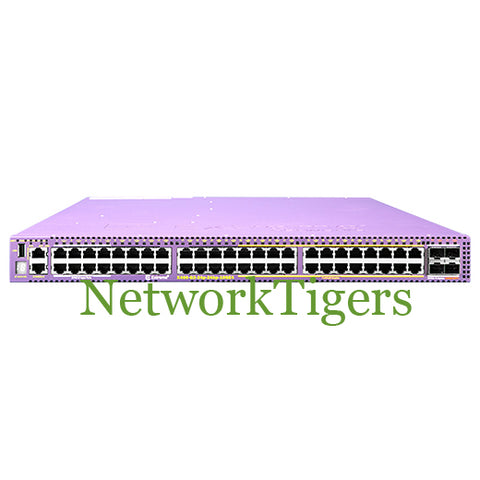

The NEW Extreme 16757 switch features a switching capacity of 336 Gbps and a forwarding rate of up to 250 Mpps. With 48x 1GB PoE+ RJ45 ports and an additional four 10GB SFP+ ports, this switch is designed to provide high-speed connectivity for demanding network environments.

The advanced design ensures efficient data transmission without compromising performance. Whether setting up a new network or expanding your current infrastructure, the Extreme Switch offers reliable support with its quality components and robust capabilities. Upgrade to the Extreme 16757 to enhance your network's speed and efficiency while meeting the requirements of modern business environments.

NEW Extreme 16757 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch

Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45 (full duplex), 24x Gigabit Ethernet PoE+ RJ45 (full/ half duplex)
Uplink Ports : 4x 10 Gigabit Ethernet SFP+
Management Ports : 1x Serial Console, 1x Gigabit Out of Band Management, 1x USB
Stacking Ports : X460-G2 VIM-2SS (2x SummitStack), X460-G2 VIM-2Q (2x SummitStack-V160) - both modules can be used to provide stacking interfaces.
Up to eight X460-G2 switches can be stacked using three different methods of stacking : SummitStack,SummitStack-V or SummitStack-V160
Name : X460-G2-24t-24ht-10GE4-Base
Module Slots : 1x Rear VIM Slot (unpopulated) 1x Rear Timing Slot (unpopulated)
Module Options : 16710 (2x 40GBASE-X), 16711 (2x 1000/10GBASE-X), 16712 (2x 10GBASE-T), 16713 (2 ports of Extremes SummitStack)
Switch Version : ExtremeXOS Advanced Edge
AirFlow Direction : Depends on PSU and fan configuration
Fan Module Options : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately (F-B 10945, B-F 10946)
Power Supplies Included : 2x PSU Slots - unpopluated - PSU's ordered separately.
Power Supply Options : 10941, 10942, 10951, 10952, 10953, 10954, 10943
Switching Capacity : 336 Gbps
Forwarding Rate : 250 Mpps
MAC Address Table Size : 96K (Layer 2)
VLAN's : 4096
DRAM and Flash : 1GB ECC DDR3 DRAM, 4GB eMMC Flash
Model Number : 16757
Part Number : 16757
Condition : New
