The Extreme 17201 X670V-48t-FB-AC switch features a switching capacity of 1280 Gbps and a forwarding rate of 952 Mpps. With a MAC Address Table Size of 128,000, this switch offers efficient data handling capabilities for high-performance networks.
The low latency of less than 3.3 microseconds ensures minimal delays in data transmission. Equipped with 44x RJ45 ports supporting up to10GB speeds and four QSFP+ F-B ports capable ofs40G connectivity, the Extreme X670V provides flexibility for various network configurations while maintaining high-speed connections.
Ideal for demanding networking environments requiring reliable performance, this switch is designed to effectively support large-scale data processing needs.

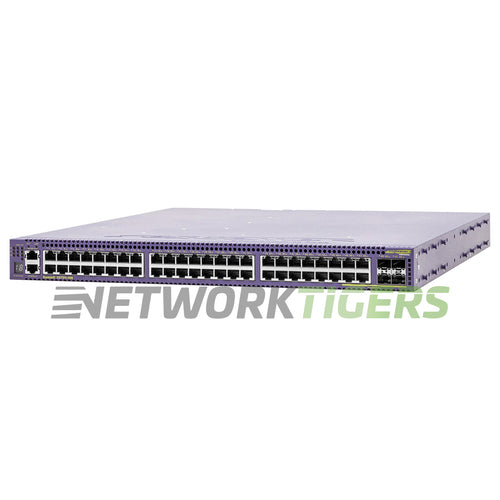

Extreme 17201 X670V-48t-FB-AC 44x 10GB RJ45 4x 40GB QSFP+ F-B Switch
- Network Ports : 4x 10 Gigabit Ethernet RJ45, 4x 10 Gigabit Combo Ports (RJ-45/SFP+)
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x 1 Gigabit Ethernet RJ45 Out-of-band management port, 1x RJ45 RS-232c Serial port (control port)
- Stacking Ports : SummitStack-V capability utilizes 10 GbE ports as stacking ports, enabling the use of standard cabling and optics technologies used for 10GbE BASE-T RJ45 and BASE-X SFP+ available on the X670V-48t.
- Stacking Options : SummitStack-V provides long-distance stacking connectivity of up to 40 km while reducing the cable complexity of
- Module Slots : 1x Module Slot - Modules not included
- Module Options : 17122 - VIM4-40G4X (4 40GBASE-X QSFP+ ports module for Summit X670V)
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x Fan Modules
- Power Supplies Included : 2x 10925 Summit 550W AC PSU
- Power Supply Options : 10926 (DC F-B), 10927 (AC B-F), 10928 (DC B-F)
- Switching Capacity : 1280 Gbps
- Forwarding Rate : 952 Mpps
- MAC Address Table Size : 128,000
- Latency : < 3.3 micro second
- Model Number : 17201
- Part Number : 17201, X670V-48t-FB-AC
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme 17201 X670V-48t-FB-AC 44x 10GB RJ45 4x 40GB QSFP+ F-B Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
