NEW Dell 210-AAWV S5000 4x Module Slot 4x 40GB QSFP+ F-B Airflow (DC) Switch
New

NEW Dell 210-AAWV S5000 4x Module Slot 4x 40GB QSFP+ F-B Airflow (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0168

Overview

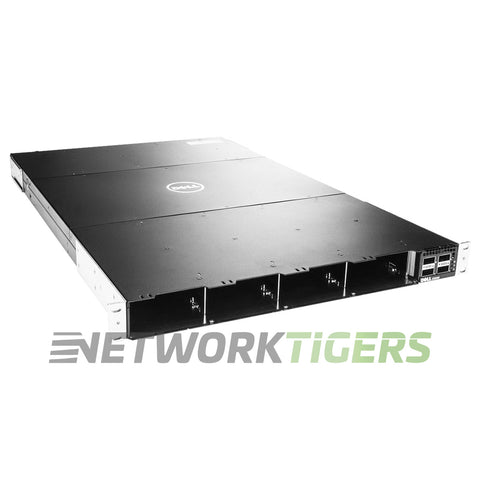

The Dell 210-AAWV S5000 Switch offers a reliable solution for networking needs. It features 4 module slots, allowing for flexibility in configuration with available expansion modules.

With a switching capacity of 1.28Tbps full-duplex and forwarding rate of up to 960 Mpps, this switch ensures efficient data transfer within your network. The MAC address table size of 128,000 provides ample space for device identification and management. Options include various module types such as the ability to support native Fibre Channel using SFP+/SFP connections or standard Ethernet interfaces like RJ-45 or SFP+. Enhance your network infrastructure with the performance and scalability offered by the Dell S5000 Switch series (modules sold separately).

Dell S5000: S5000, 4 slots, 4xQSFP+, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal), DC PSU.


Specifications

  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Module Slots : 4x Expansion Module Slot - No modules included. Sold separately.
  • Module Options : 3x Module Options - 12x 1/10GbE SFP+ module, 12x 1/10GbE RJ-45 module, 12x 2/4/8Gbps native Fibre Channel using SFP+/SFP - none included
  • Switch Version : OS9
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Fan Module Options : 2x Fan Modules
  • Power Supplies Included : 2x DC PSU Included
  • Packet Buffer : 9MB
  • Switching Capacity : 1.28Tbps (full-duplex), 640Gbps (half-duplex)
  • Forwarding Rate : 960 Mpps
  • MAC Address Table Size : 128,000
  • CPU Memory : 2GB
  • Model Number : 210-AAWV
  • Part Number : 210-AAWV, S5000
  • Condition : New


Included

  • One (1) NEW Dell S5000 4x Module Slot 4x 40GB QSFP+ F-B Airflow (DC) 210-AAWV Switch as described above
