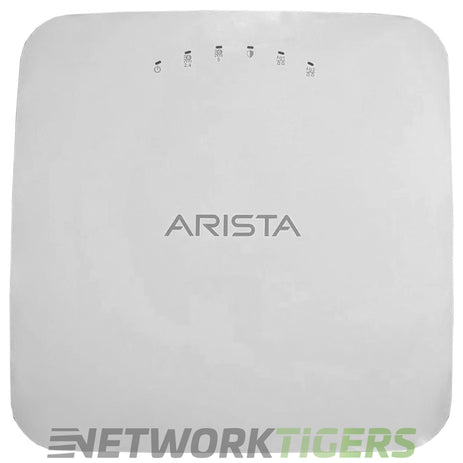

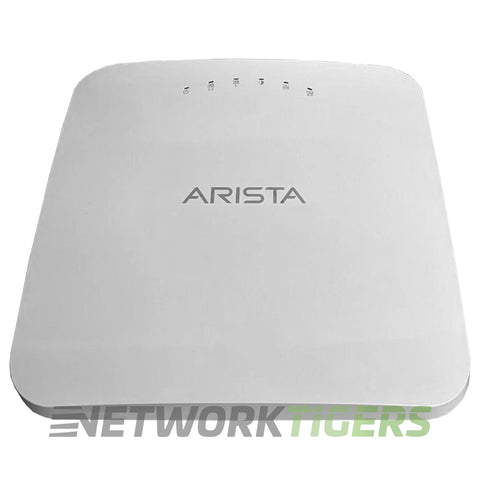

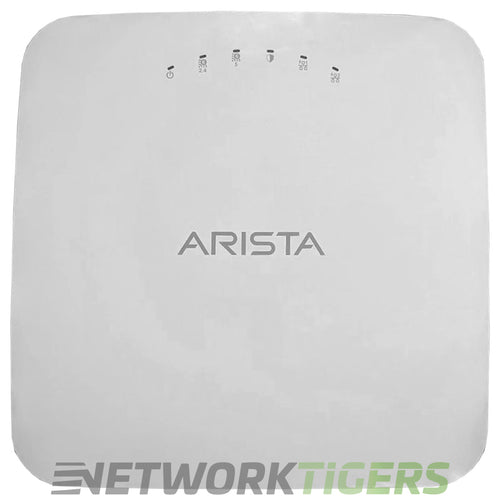

The Arista C-260 is a tri-radio Wi-Fi 6 (802.11ax) access point built for high client density. It combines an 8x8, 8 radio on 5GHz, a 4x4, 4 radio on 2.4GHz and a 2x2 dual-band scan radio. The spec table gives up to 9.6 Gbps on 5GHz and 1.1 Gbps on 2.4GHz, while the datasheet overview cites 4.8 and 1.4 Gbps.
The scan radio is dedicated to WIPS and client connectivity tests, so security scanning does not interrupt service on the client radios.
Two 5GbE RJ-45 ports (100M, 1G, 2.5G or 5G) give it more wired bandwidth than the C-250, which matters when the radios are busy. Full function needs PoE++; on PoE+ the USB port turns off and maximum EIRP is reduced. Power draw is 35.2W maximum and 30W average.
Management is through Arista CloudVision Wi-Fi, cloud or on premises, and requires CloudVision Wi-Fi licensing, which is not included. There is an RJ-45 console and a USB 2.0 port reserved for future use. The unit measures 9.1 x 9.1 x 1.77 inches, weighs 3 lb and mounts on walls or ceilings.
A new AP-C260 is also available.
This seller refurbished AP-C260 is tested, working, and covered by the NetworkTigers one-year warranty.
- Wi-Fi Standard : Wi-Fi 6 - IEEE 802.11a/b/g/n/ac/ax
- Licensing : Requires a license to be configured and monitored - Licence is sold separately and can be purchased directly from Arista
- Suggested Use : Critical, high-density networks, large schools, large remote offices, auditoriums, meeting rooms, and enterprise campuses, indoor deployment
- Radios : 3x total, 1x 2.4GHz, 1x 5GHz, plus a dedicated 2x2 dual-band scanning radio for WIPS and RF analysis
- Spatial Streams per Radio : 4x streams on 2.4GHz using 4x4 by 4, 8x streams on 5GHz using 8x8 by 8, and 2x streams on the multipurpose scan radio, for 12x access streams total plus the scan radio
- Maximum Data Rate : 1.1 Gbps on 2.4GHz and up to 9.6 Gbps on 5GHz
- Bluetooth / IoT Radios : Integrated 2.4GHz Bluetooth Low Energy (BLE) radio
- PoE Standard : PoE++ required for full functionality including hitless PoE failover between the two Ethernet ports, PoE+ supported with reduced function (USB disabled)
- DC Power Input : 12V DC input, 5.5mm barrel connector, optional universal AC power supply available separately, part number PWR-AP-W4 (12VDC, 3.3A), not included

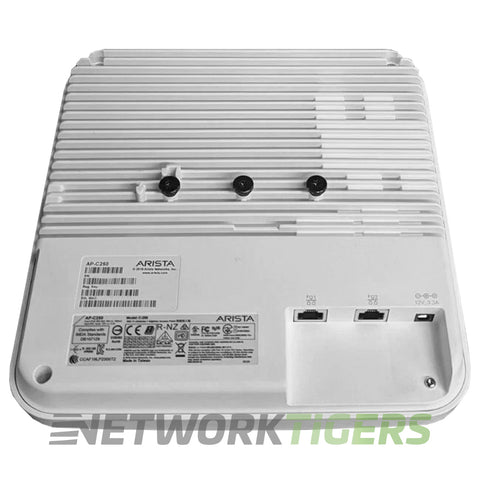

- Uplink Ports : 2x 5 Gigabit Ethernet (PoE++ compliant, MACsec capable via future update) RJ-45

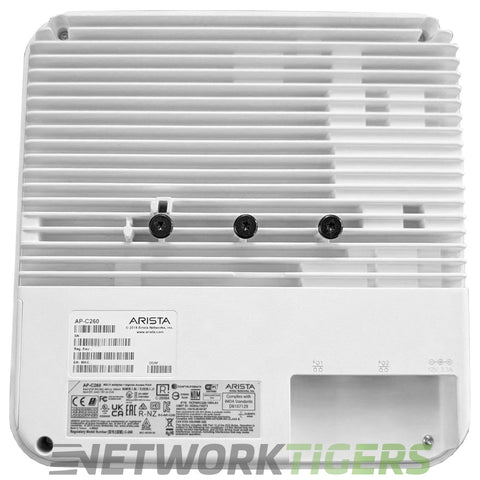

- Other Ports : 1x USB 2.0 port, Type A (reserved for future use), 1x Console port, RJ-45 (RS-232 serial, 115200 bps), plus a pinhole reset button
- Antenna Type : Integrated modular high efficiency PIFA antennas, 8x on 5GHz (peak gain 6.1dBi), 4x on 2.4GHz (peak gain 4.92dBi)
- Mounts Included : Mounting kits are sold separately
- Model Number : AP-C260
- Part Number : AP-C260
- Condition : Seller refurbished
- One (1) Seller refurbished Arista AP-C260 Wi-Fi 6 802.11ax Internal Omni Directional Antenna Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website - Power Adapter Not Included
- Power Injector Not Included
