The APC AP7811B Metered Rack PDU provides reliable power distribution for your rack-mount equipment. With 12 IEC-C13 and 4 IEC-C19 outlets, this unit delivers power at a voltage range of 208-240V.
The input connection is through a NEMA L6-30P plug that accepts an input voltage of 208V-240V with a frequency of 50-60Hz and an amperage rating of up to 30A. Each phase can handle a maximum current load of 20A, ensuring efficient power delivery without overloading the circuits.
This PDU is ideal for data centers or server rooms requiring precision metering capabilities to monitor energy usage accurately while providing reliable power distribution to connected devices.

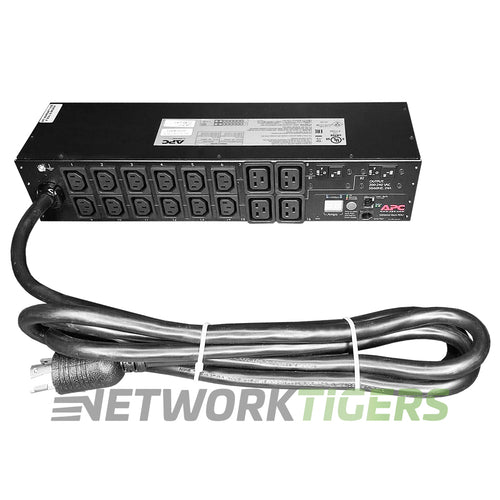

APC AP7811B Metered 2U 30A 12x C13s 4x C19 208V Rack PDU
- Power Output Connections : 12x IEC 60320 C13, 4x IEC 60320 C19
- Power Output Voltage : 208-240V
- Input Connection : 1x Power NEMA L6-30P
- Input Voltage : 208V-240V
- Input Frequency : 50/60 Hz
- Input Amperage : 30A
- Load Capacity : 4992 VA
- Max Current per Phase : 20A
- Cord Length : 12 ft (3.66 m)
- Rack Mounts : Included
- Form Factor : 2U Rack mount
- Model Number : AP7811B
- Part Number : AP7811B
- Condition : Seller refurbished
- One (1) Seller Refurbished APC AP7811B Metered Rack 12x IEC-C13 4x IEC-C19 PDU 208V-240V as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
