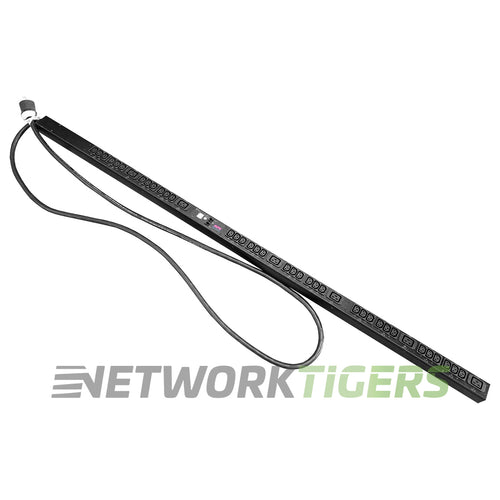

APC AP7894 Metered Rack 208V 20A 36x IEC-320-C13 6x IEC-320-C19 PDU

APC AP7894 Metered Rack 208V 20A 36x IEC-320-C13 6x IEC-320-C19 PDU

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9010
UPC: 731304223078

Overview

The APC AP7894 Metered Rack PDU provides reliable power distribution with 36x IEC-320-C13 outlets and 6x IEC-320-C19 outlets. It features an input connection of 1x NEMA L21-20 plug, suitable for a voltage range of 120/208 VAC on a three-phase system with an input frequency between 47 -63 Hz.

The unit has a load capacity of 5.7 kW and can handle a maximum current per phase of 20A. This rack-mounted PDU is designed to meet regulatory standards, offering practical functionality for managing power requirements in data centers or IT facilities seeking efficient equipment operation.

APC AP7894 Metered Rack 208V 20A 36x IEC-320-C13 6x IEC-320-C19 PDU


Specifications

  • Power Output Connections : 36x IEC-320-C13 outlets, 6x IEC-320-C19 outlets
  • Input Connection : 1x NEMA L21-20 plug
  • Input Voltage : 120/208 VAC, 3-phase
  • Input Frequency : 47 - 63 Hz
  • Input Amperage : 16A (regulatory)
  • Load Capacity : 5.7 kW
  • Max Current per Phase : 20A (maximum)
  • Cord Length : 10 ft (3.05 meters)
  • Rack Mounts : Included - Cord retention bracket(s), Rack Mounting brackets, Toolless Mounting Kit
  • Color : Black
  • Model Number : AP7894
  • Part Number : AP7894
  • Condition : Seller refurbished

Datasheet

More information on this APC AP7894.

Included

  • One (1) Seller Refurbished APC AP7894 Metered Rack 208V 20A 36x IEC-320-C13 6x IEC-320-C19 PDU as described above
  • One (1) Set of Rack Mount Plastic Grommets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
