The Extreme Brocade BR-SLX-9140-48V-AC-R is an advanced network switch designed for demanding environments. It features 48 SFP28 and 6 QSFP28 ports, offering high-speed connectivity options.
With a switching capacity of 1.8 Tbps in both directions, this switch provides excellent performance for data transmission. It can handle up to 1.2 billion packets per second (Bpps) at layer two and 600 million packets per second (Mpps) at layer three.
Thanks to its large MAC address table size of up to 96,000 entries, the switch can efficiently manage networks with numerous connected devices without experiencing performance degradation.
Latency is also minimal on this device, with a write time of around 2.5 microseconds (µs). This translates into fast response times when sending or receiving data across the network.

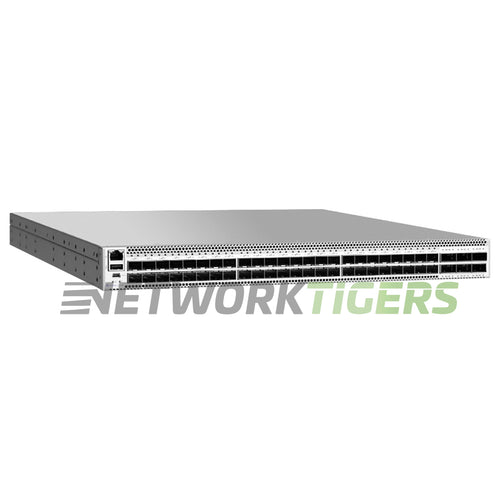

Extreme Brocade BR-SLX-9140-48V-AC-R 48x 25 SFP28 6x 100G QSFP28 B-F Air Switch
- Network Ports : 48x 25 Gigabit Ethernet SFP28
- Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Out of Band Management, 1x RJ45 Console Management, 1x USB Serial Type C, 1x USB Type A
- AirFlow Direction : Back to Front Airflow
- Fan Module Options : 5x Field Replaceable Fans Included
- Power Supplies Included : 2x Internal, Field Replaceable, Redundant Load Sharing AC PSU's Included
- Switching Capacity : 1.8 Tbps in and 1.8 Tbps out for a sum total of 3.6 Tbps
- Forwarding Rate : (L2) 1.2 Bpps, (L3) 600 Mpps line-rate performance
- MAC Address Table Size : Up to 96,000
- Latency : 2.5 usec
- Model Number : BR-SLX-9140-48V-AC-R
- Part Number : BR-SLX-9140-48V-AC-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme BR-SLX-9140-48V-AC-R ExtremeSwitching SLX 9140 Series Brocade 48x 25 Gigabit Ethernet SFP28 6x 100G QSFP28 Back to Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
