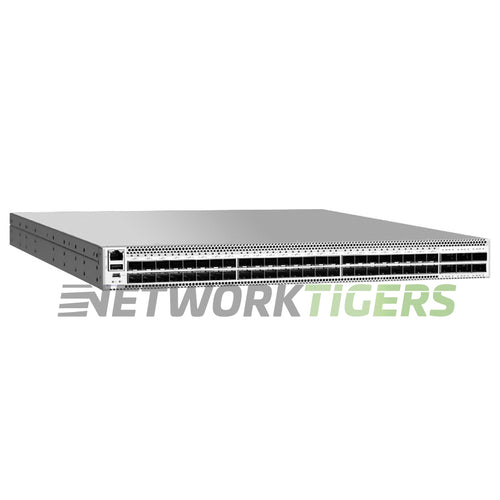

The Extreme Brocade BR-SLX-9140-48V-DC-F switch is a high-performance network device designed for demanding data centers. With its 48x 25G SFP28 ports and 6x QSFP28 F-B (DC) ports, this switch has a switching capacity of 1.8 Tbps in both inbound and outbound traffic, resulting in a total throughput of up to 3.6 Tbps.
One notable feature of the BR-SLX-9140-48V-DC-F is its exceptional forwarding rate performance with line-rate speeds at both Layer 2 (1.2 Bpps) and Layer 3 (600 Mpps). This ensures fast packet processing without effecting network efficiency.
This switch supports MAC address table sizes up to an extensive limit of 96,000 entries while maintaining low latency figures at approximately 2.5 microseconds — ideal for real-time applications or any delay-sensitive workloads.
Extreme Brocade BR-SLX-9140-48V-DC-F: SLX 9140-48V switch DC with front-to-back airflow 8x 25 GbE/10 GbE/1 GbE + 6x 100 GbE/40 GbE
- Network Ports : 48x 25 Gigabit Ethernet SFP28
- Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Out of Band Management, 1x RJ45 Console Management, 1x USB Serial Type C, 1x USB Type A
- AirFlow Direction : Front to Back Airflow
- Fan Module Options : 5x Field Replaceable Fans Included
- Power Supplies Included : 2x Internal, Field Replaceable, Redundant Load Sharing DC PSU's Included
- Switching Capacity : 1.8 Tbps in and 1.8 Tbps out for a sum total of 3.6 Tbps
- Forwarding Rate : (L2) 1.2 Bpps, (L3) 600 Mpps line-rate performance
- MAC Address Table Size : Up to 96,000
- Latency : 2.5 usec
- Model Number : BR-SLX-9140-48V-DC-F
- Part Number : BR-SLX-9140-48V-DC-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme BR-SLX-9140-48V-DC-F ExtremeSwitching SLX 9140 Series Brocade 48x 25 Gigabit Ethernet SFP28 6x 100G QSFP28 Front to Back Airflow (DC) Switch as described above
- Two (2) DC Power Supplies Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
