Cisco C9200-48P-A Catalyst 9200 is a high-performance network switch with numerous features for efficient data transfer. It's 48x 1GB PoE+ RJ-45 ports and additional module slots provide ample connectivity options. The built-in Power over Ethernet (PoE) technology allows the power switch various PoE+ devices.
This model has two power supply slots, enabling redundant powering and providing flexibility in case of failure. It can deliver a maximum PoE budget of up to 740W with one PSU or an impressive 1440W with dual PSUs installed.
Regarding performance, the Cisco C9200-48P-A boasts a switching capacity of up to 176 Gbps (336 Gbps when stacked), allowing for smooth data flow across networks. Its forwarding rate reaches 261.9 Mpps (250 Mpps with stacking capability), ensuring quick and reliable packet delivery.

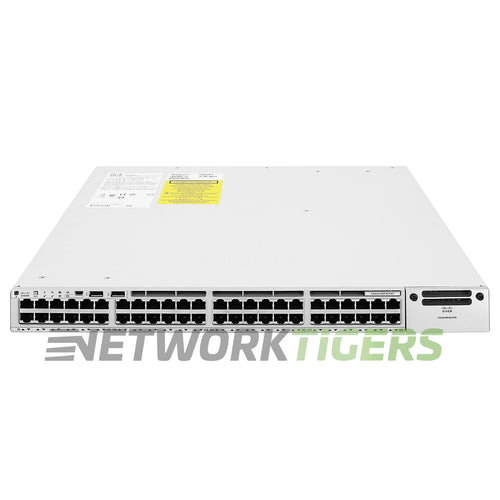

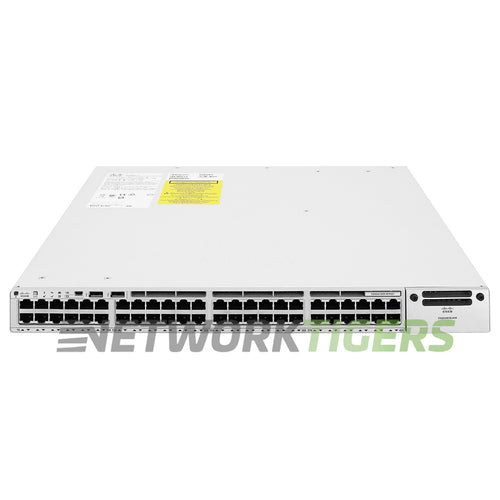

Cisco C9200-48P-A Catalyst 9200 48x 1GB PoE+ RJ-45 1x Module Slot Switch
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ-45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately - Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Advantage
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C5-1KWAC Included - 2x Slots - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK
- PoE Budget : 740W (with 1x PSU), 1440W (with 2x PSU's)
- Switching Capacity : 176 Gbps (336 Gbps with Stacking)
- Forwarding Rate : 261.9 Mpps (250 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9200-48P-A
- Part Number : C9200-48P-A, C9200-48P-A=, C9200-48P-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9200-48P-A Catalyst 9200 48x 1GB PoE+ RJ-45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
