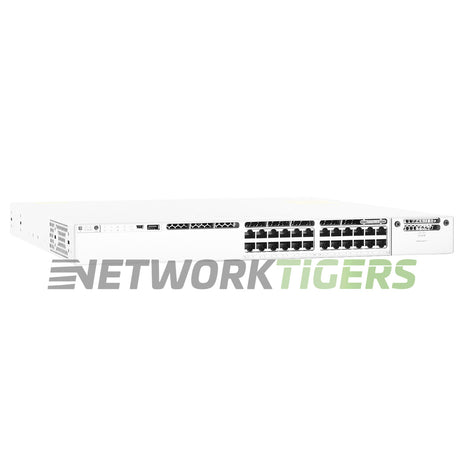

The Cisco C9300-24U-E Catalyst 9300 switch is a powerful business networking solution. Its 24x Gigabit Ethernet ports that support UPoE provide reliable connectivity and power to connected devices. The switch also features one module slot for additional expansion.
This switch has an impressive PoE budget, which can range from 830W to an impressive maximum of 1440W depending on the second PSU configuration chosen. This ensures ample power delivery even in demanding network environments.
Regarding performance, the C9300-24U-E offers a switching capacity of up to 208 Gbps or a staggering total stacking capability of up to 688 Gbps with stacking enabled. Its forwarding rate reaches 150 Mpps (or 511 Mpps when stacked), ensuring fast and efficient data transmission across your network.
This model boasts MAC Address Table Size -32k entries allowing extensive address management capabilities without reducing speed.
Cisco C9300-24U-E: Catalyst 9300 24x 1Gb RJ45 UPOE ports.
- Network Ports : 24x 1 Gigabit Ethernet UPOE RJ-45
- Management Ports : 1x Management Console RJ-45, 1x Management Console RJ-45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports
- Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Modules are not included, Expansion Module Options
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Sold Separately.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC PSU Included - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C1-1100WAC, PWR-C1-715WAC, PWR-C1-350WAC
- PoE Budget : 830W (1180W with 350W 2nd PSU, 1440W with 715W 2nd PSU, 1440W with 1100W 2nd PSU)
- Switching Capacity : 208 Gbps (688 Gbps with Stacking)
- Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24U-E
- Part Number : C9300-24U-E, C9300-24U-E=, C9300-24U-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-24U-E Catalyst 9300 24x 1GB UPoE RJ-45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
