The NEW Cisco C9300X-24Y-A Catalyst 9300X Series switch is a reliable and efficient business network solution. With its 24x 25GB SFP28 ports, it provides high-performance connectivity. The switch also features a single expansion module slot, allowing additional functionality.
This model does not support Power over Ethernet (PoE), making it ideal for environments without PoE. It offers an impressive switching capacity of up to 2,000 Gbps. When stacked with other switches, this capacity increases to 3,000 Gbps.
The C9300X-24Y-A can handle up to 1488 Mpps (million packets per second). This rate improves even further when stacking multiple switches together—with stacking enabled, the forwarded packet count reaches up to approximately2232 Mpps.
This Cisco switch has a MAC address table size of 32K entries or addresses—an essential feature in managing large networks efficiently.

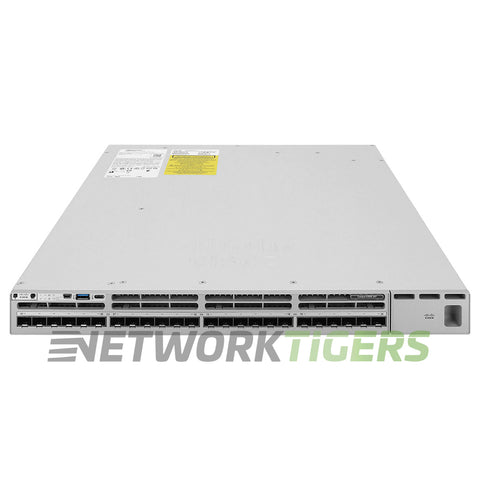

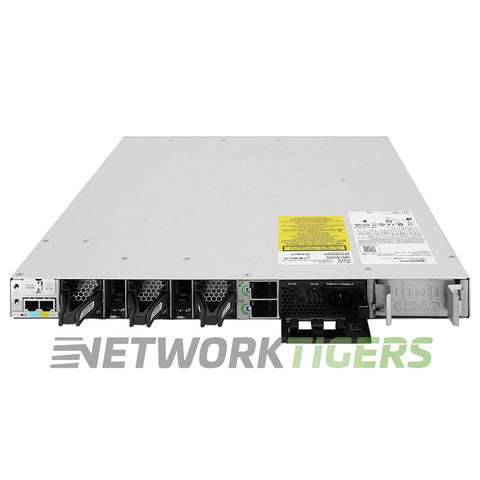

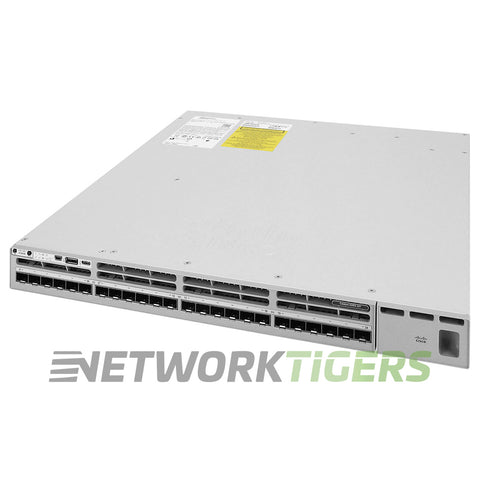

NEW Cisco C9300X-24Y-A Catalyst 9300X 24x 25GB SFP28 1x Exp Mod Slot Switch
- Network Ports : 24x 25 Gigabit Ethernet SFP28
- Management Ports : 1x USB 2.0,1x USB 3.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately -
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P PSU Included (Default) - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- DRAM and Flash : 16GB DRAM, 16GB Flash
- Model Number : C9300X-24Y-A
- Part Number : C9300X-24Y-A
- Condition : New
- One (1) NEW Cisco C9300X-24Y-A Catalyst 9300X 24x 25GB SFP28 1x Exp Mod Slot Switch as described above
