The Cisco C9300X-48HX-A Catalyst 9300X Switch is a powerful networking device designed for high-performance enterprise networks. Its multi GB UPoE RJ45 ports offer fast and reliable connectivity to multiple devices.
Equipped with a PoE budget of up to 590W (or higher with additional power supply units), this switch can provide sufficient power to support various networked devices such as IP phones, wireless access points, and surveillance cameras.
Featuring a switching capacity of 2,000 Gbps (expandable up to 3,000 Gbps with stacking) and a forwarding rate of up to 1488 Mpps (or higher when stacked), the C9300X-48HX-A ensures smooth data transmission even in bandwidth-intensive environments. Its MAC Address Table Size allows storing up to 32k unique addresses, ensuring efficient handling of connected devices on the network.

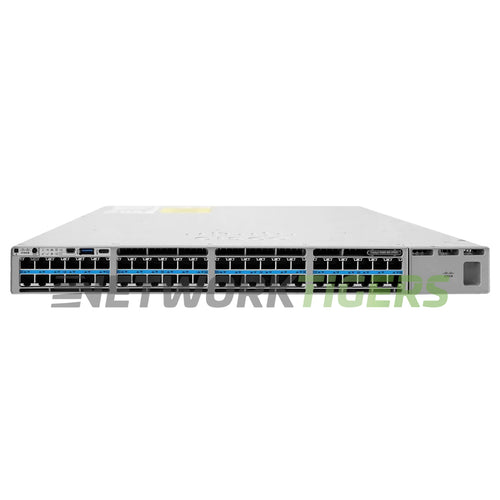

Cisco C9300X-48HX-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Exp Mod Slot Switch
- Network Ports : 48x MultiGigabit Ethernet (10G/5G/2.5G/1G/100M) UPoE+ (90W) RJ45
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : 590W (w/ Default PSU) - 940W w/ 350W Secondary PSU, 1305W w/ 715W Secondary PSU, 1690W w/ 1100W Secondary PSU, 2490W w/ 1900W Secondary PSU.
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-48HX-A
- Part Number : C9300X-48HX-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-48HX-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
