The Cisco C9300X-48TX-E Catalyst 9300X is a high-performance network switch for enterprise-level use. It features 48 multi-gigabit RJ45 Ethernet ports and one expansion module slot, offering flexible connectivity options.
This switch focuses on providing advanced switching capabilities rather than Power over Ethernet functionality. The device has a powerful switching capacity of 2,000 Gbps (3,000 Gbps with stacking), allowing for fast data transfer rates within the network.
It can handle up to 1488 Mpps (2232 Mpps with stacking), ensuring efficient traffic flow even in demanding environments. The MAC address table size supports up to 32,000 entries for effectively managing devices connected to the network.

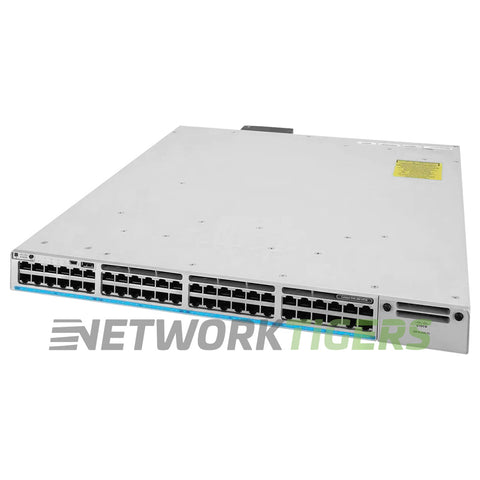

Cisco C9300X-48TX-E Catalyst 9300X 48x MultiGB RJ45 1x Exp Mod Slot Switch
- Network Ports : 48x MultiGigabit Ethernet (10G/5G/2.5G/1G/100M) RJ45
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x Stackwise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately - StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and Catalyst 9300 models are supported at StackWise-480 speeds
- StackPower : Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : Module Options are C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- Packet Buffer : 16 MB
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- VLAN's : 4094
- DRAM and Flash : 16 GB DRAM, 16 GB Flash
- Model Number : C9300X-48TX-E
- Part Number : C9300X-48TX-E
- Condition : New
- One (1) NEW Cisco C9300X-48TX-E Catalyst 9300X 48x MultiGB RJ45 1x Exp Mod Slot Switch as described above
