The Cisco C9500-16X-A Catalyst 9500 switch is ideal for high-performance and scalable enterprise networks. With its 10GB SFP+ ports, this switch offers fast and reliable connectivity between devices. It features a front-to-back airflow design, ensuring efficient cooling in data center environments.
One of the notable capabilities of this model is support for up to VLAN IDs: 4000, enabling flexible network segmentation for enhanced security and optimization. It boasts a switching capacity of up to 480 Gbps, making it suitable for handling heavy network traffic loads without any bottlenecks.
The forwarding rate reaches up to 360 Mpps (million packets per second), guaranteeing low latency packet delivery even under intense workloads. The MAC address table size can accommodate up to 64,000 entries, making reliable management as you expand your network infrastructure.

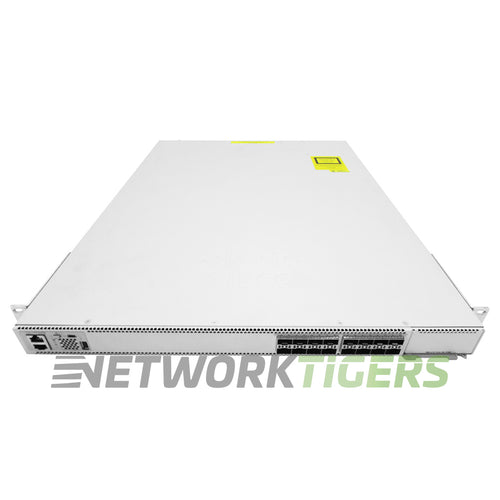

Cisco C9500-16X-A: Cisco Catalyst 9500 16-port 10G switch.
- Network Ports : 16x 10 Gigabit Ethernet SFP+
- Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
- Stacking Ports : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
- Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
- Module Slots : 1x Expansion Module Slot - Sold Separately
- Module Options : C9500-NM-8X, C9500-NM-2Q
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 5x FAN-T4-R Fans Modules - Front-to-Back Airflow
- Power Supplies Included : 1x PWR-C4-950WAC-R Power Supply included - 2x Slot - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
- Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) : Up to 64,000 indirect - Up to 80,000 host
- Switching Capacity : Up to 480 Gbps
- Forwarding Rate : Up to 360 Mpps
- MAC Address Table Size : 64,000
- VLAN ID's : 4000
- DRAM and Flash : 4GB DDR2 SDRAM, 16GB Flash
- Model Number : C9500-16X-A
- Part Number : C9500-16X-A, C9500-16X-A=, C9500-16X-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9500-16X-A Catalyst 9500 16x 10GB SFP+ Front-to-Back Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
