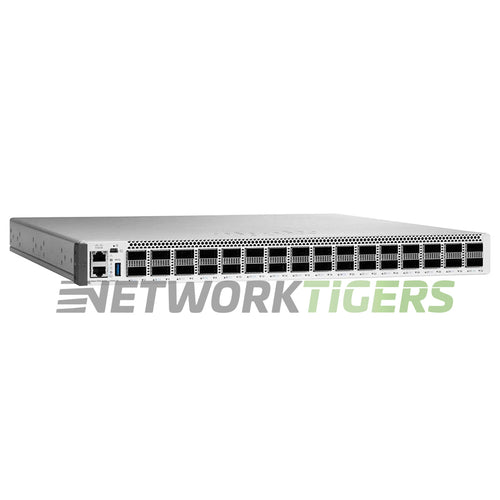

The Cisco C9500-32C-E Catalyst 9500 switch is designed for high-performance data center environments. With its impressive switching capacity of up to 6.4 Tbps and forwarding rate of up to 2 Bpps, this switch ensures seamless performance even during heavy network traffic.
Featuring a front-to-back airflow design, the C9500-32C-E promotes efficient cooling by pulling cold air from the front and expelling hot air through the back. This helps maintain optimal operating temperatures and enhances system reliability.
With a MAC address table size of 82,000 entries, this switch supports large-scale deployments without reducing speed or scalability. It offers advanced networking capabilities such as deep packet inspection (DPI), virtual LANs (VLANs) support, and Quality-of-Service (QoS) prioritization.
Cisco Catalyst C9500-32C-E: Cisco Catalyst 9500 Series high-performance 32-port 100G switch.
- Network Ports : 32x 100 Gigabit Ethernet QSFP28 (40/100)
- Product Family : Catalyst 9500 Series
- Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x 1 Gigabit Management
- Switch Version : Network Essentials
- System Memory : 16 GB DRAM, 16 GB Flash
- AirFlow Direction : Front-to-Back Airflow
- Fan Modules : 5x FAN-T4-R Fans Modules
- Power Supplies : 1x C9K-PWR1600WAC-R Power Supply Included - 2x Slots - 2nd Power Supply ordered Separately - Options are C9K-PWR1600WAC-R, C9K-PWR1600WDC-R
- Switching Capacity : Up to 6.4 Tbps
- Forwarding Rate : Up to 2 Bpps
- MAC Address Table Size : 82,000
- Total number of IPv4 routes : Up to 212,000 indirect + direct, Up to 90,000 host/ARP
- Total number of IPv6 routes : Up to 212,000 indirect + direct, Up to 90,000 host
- Multicast Routes : Up to 32,000 (IPv4), Up to 32,000 (IPv6)
- VLANs Supported : 4000
- Stacking : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit. The user can stack 2x C9500 switches together using a high speed Ethernet cable.
- Model Number : C9500-32C-E
- Part Number : C9500-32C-E, C9500-32C-E=, C9500-32C-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9500-32C-E Catalyst 9500 32x 100GB QSFP28 Front-to-Back Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
