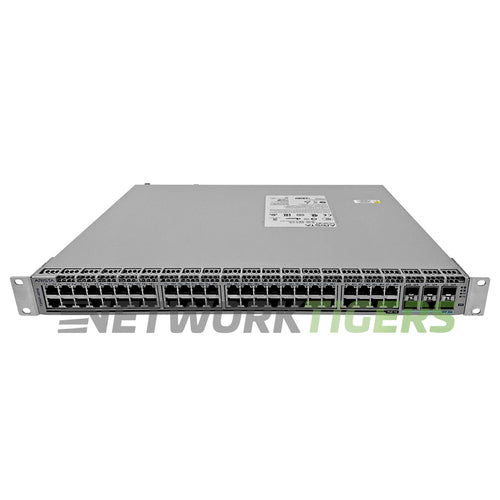

This 1RU access switch provides 48 10/100/1000BASE-T ports with up to 30W of 802.3at PoE per port, plus six 25G SFP28 uplinks. Arista rates it at 396 Gbps (198 Gbps one way) and 294 Mpps, with 1.2 microseconds of latency and an 8 MB packet buffer.
A single 1050W AC power supply is included, leaving the second slot free. Arista lists the PoE budget at 982W typical with one 1050W supply and 1875W with two, so adding a second unit both doubles available PoE and adds redundancy. Supported supplies include PWR-621-AC-RED (650W AC), PWR-1021-AC-RED (1050W AC), PWR-521-DC-RED (500W DC) and PWR-721-DC-RED (700W DC).
Cooling is front-to-back (port-side intake) from three hot-swap FAN-7000-F modules in N+1. Management runs over an RJ-45 port, RS-232 console and USB, with 4 GB DRAM and 8 GB flash on board. The switch weighs 15.3 lb.
Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
A new CCS-720XP-48Y6-F is also available. Matching spares include the FAN-7000-F fan module.
Check your rack depth, power feeds, and cold-aisle orientation before you order, since the airflow direction is set by the fans and power supplies installed.
This seller refurbished CCS-720XP-48Y6-F is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 10/100/1000BASE-T PoE (30W 802.3at)
- Uplink Ports : 6x 25G SFP28
- Management Ports : 1x 100M/1G mgmt RJ45, 1x RS-232 console, 1x USB
- Product Family : 720XP Series
- CPU : Dual Core-x86
- Switching Bandwidth : 700 Gbps
- Packet Buffer : 6MB
- VLAN ID's : 4096
- Switch Version : Arista EOS
- AirFlow Direction : front-to-back (port-side intake)
- Fan Module Options : FAN-7000-F
- Power Supplies Included : 1x 1050W AC
- Power Supply Options : PWR-621-AC-RED (650W AC), PWR-1021-AC-RED (1050W AC), PWR-521-DC-RED (500W DC), PWR-721-DC-RED (700W DC)
- PoE Budget : 982W typical, 957W min with 1x 1050W, 1875W/1850W with 2x 1050W
- Switching Capacity : 396 Gbps (198 Gbps one way)
- Forwarding Rate : 294 Mpps
- MAC Address Table Size : 112,000
- Latency : 1.2 microseconds
- DRAM and Flash : 4 GB DRAM, 8 GB flash
- Model Number : CCS-720XP-48Y6-F
- Part Number : CCS-720XP-48Y6-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista CCS-720XP-48Y6-F 48x 1GB PoE RJ45 6x 25GB SFP28 F-B Airflow Switch as described above
- One (1) Power Cords Included
- One (1) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
