The Arista CCS-720XP-48ZC2-2F switch features a PoE budget of 909W with default power supplies, and up to 1787W with dual AC power supplies. Switching capacity is rated at 440 Gbps (880 Gbps full duplex) with a forwarding rate of 654 Mpps.
The switch supports up to 112,000 MAC addresses and has an ultra-low latency of just 1.2 microseconds. It offers versatile connectivity options including multiple MultiGB RJ45 ports, SFP+ for high-speed networking, as well as QSFP28 interfaces for increased bandwidth capabilities.
For reliable performance in various environments requiring efficient data processing and network stability the Arista CCS-720XP series stands out by delivering consistent throughput rates supported by its powerful hardware design."

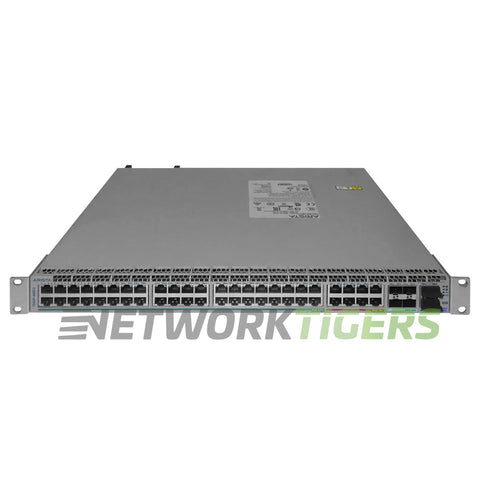

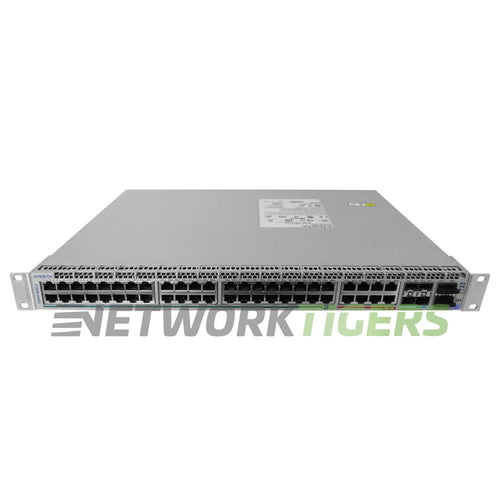

Arista CCS-720XP-48ZC2-2F: Arista 720XP, 40 x 100M-2.5G PoE, 8 x 100M-5G PoE, 4 x 25G SFP, 2 x 100G QSFP switch, front to rear air, 2 x 1050W AC.
- Network Ports : 40x 100MB - 2.5 Gigabit Ethernet PoE RJ45 (30W per port - 802.3af/at), 8x 100M - 5 Gigabit Ethernet PoE RJ45 (60W per port - 802.3bt)
- Uplink Ports : 4x 25 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x USB, 1x RJ45 Console, 1x Gigabit Management
- Product Family : 720XP Series
- Packet Buffer : 6MB
- Switching Bandwidth : 1120 Gbps
- CPU : Dual Core-x86
- VLAN ID's : 4096
- Switch Version : Arista EOS
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-7000-F Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x Slots - 2x PWR-1021-AC-RED 1050W AC Power Supply Included - Front-to-Back Airflow
- Power Supply Options : Other PSU Options are PWR-621-AC-RED (650W AC), PWR-521-DC-RED (500W DC)
- PoE Budget : 909W (w/ Default 1x 1050W AC PSU), 1787W (w/ Dual 1050W AC PSU's) - 1047W w/ Dual 650W AC, 794W w/ Dual 500W DC PSU's
- Throughput (FDX) : 440 (880) Gbps
- Forwarding Rate : 654 Mpps
- MAC Address Table Size : 112,000
- Latency : 1.2 microseconds
- DRAM and Flash : 4GB Flash, 4GB System Memory
- Model Number : CCS-720XP-48ZC2-2F
- Part Number : CCS-720XP-48ZC2-2F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista CCS-720XP-48ZC2-2F 48x MultiGB PoE RJ45 4x SFP+ 2x QSFP28 F-B Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
