The Arista CCS-720XP-48ZC2-F is a high-performance switch ideal for data centers and networking environments. With PoE budget ranging from 794W to 1787W, this switch provides power-efficient network connectivity.
It offers an impressive switching capacity of up to 880 Gbps with low latency at just 1.2 microseconds, ensuring fast and reliable data transfer. The MAC address table size of 112,000 allows for efficient management of connected devices. Equipped with multiple power supply options and various port configurations including MultiGB RJ45, SFP+, and QSFP28 interfaces, the Arista CCS-720XP-48ZC2-F delivers excellent flexibility for diverse networking needs.

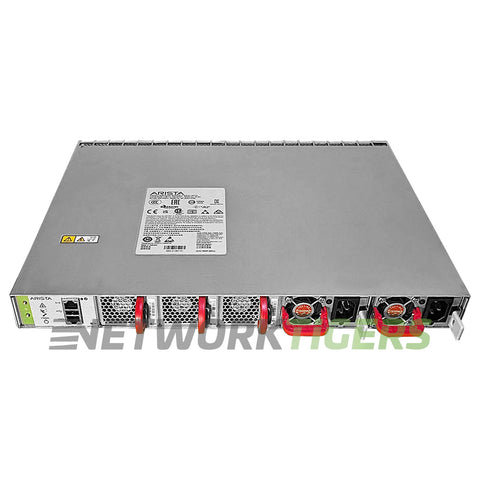

Arista CCS-720XP-48ZC2-F: Arista 720XP, 40 x 100M-2.5G PoE, 8 x 100M-5G PoE, 4 x 25G SFP, 2 x 100G QSFP switch, front to rear air, 1 x 1050W AC.
- Network Ports : 40x 100MB - 2.5 Gigabit Ethernet PoE RJ45 (30W per port - 802.3af/at), 8x 100M - 5 Gigabit Ethernet PoE RJ45 (60W per port - 802.3bt)
- Uplink Ports : 4x 25 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x USB, 1x RJ45 Console, 1x Gigabit Management
- Product Family : 720XP Series
- Packet Buffer : 6MB
- Switching Bandwidth : 1120 Gbps
- CPU : Dual Core-x86
- VLAN ID's : 4096
- Switch Version : Arista EOS
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-7000-F Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x Slots - 1x PWR-1021-AC-RED 1050W AC Power Supply Included - Front-to-Back Airflow
- Power Supply Options : Other PSU Options are PWR-621-AC-RED (650W AC), PWR-521-DC-RED (500W DC)
- PoE Budget : 909W (w/ Default 1x 1050W AC PSU), 1787W (w/ Dual 1050W AC PSU's) - 1047W w/ Dual 650W AC, 794W w/ Dual 500W DC PSU's
- Throughput (FDX) : 440 (880) Gbps
- Forwarding Rate : 1.3 Bpps
- MAC Address Table Size : 112,000
- Latency : 1.2 microseconds
- DRAM and Flash : 4GB Flash, 4GB System Memory
- Model Number : CCS-720XP-48ZC2-F
- Part Number : CCS-720XP-48ZC2-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista CCS-720XP-48ZC2-F 40x 2.5G PoE 8x 5G PoE 4x SFP+ 2x QSFP28 F-B Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
