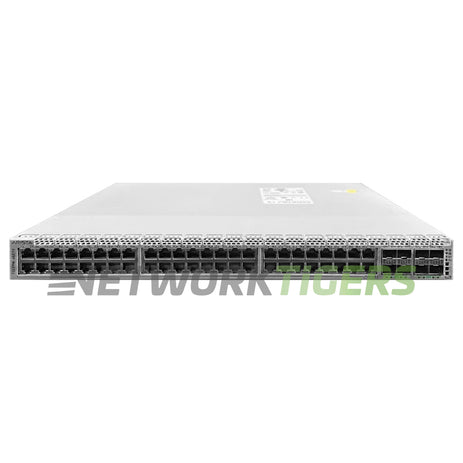

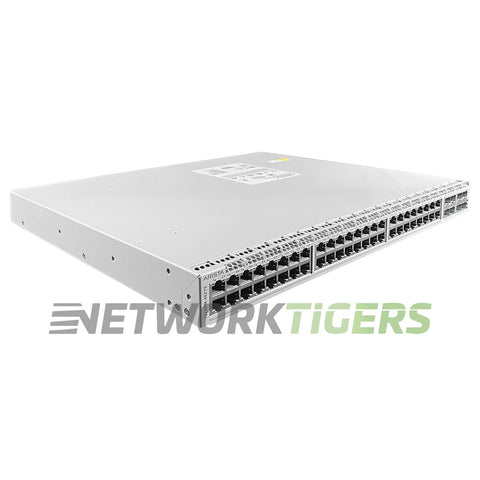

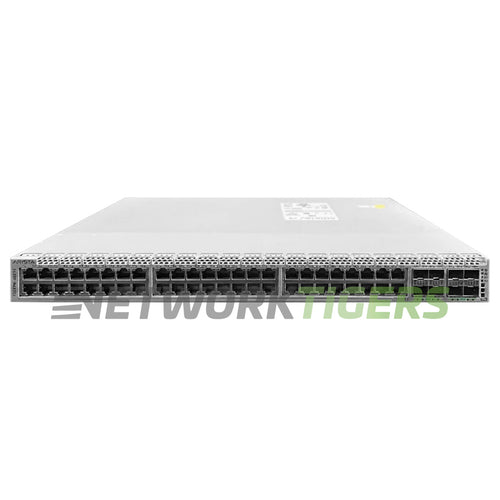

Arista CCS-722XPM-48ZY8-F 48x 2.5GB PoE++ RJ45 8x 25GB SFP28 F-B MACsec Switch

Every one of the 48 ports on the 722XPM-48ZY8 runs at 100M to 2.5G and can supply up to 60W of 802.3bt PoE, which suits high-draw access points, cameras and other powered devices. Eight 25G SFP28 ports handle uplinks.

All ports support 256-bit MACsec encryption, which requires an Arista MACsec license, sold separately. Switching capacity is 640 Gbps at 952 Mpps, with 1.2 microseconds of latency and an 8 MB buffer, backed by 4 GB DRAM and 16 GB flash.

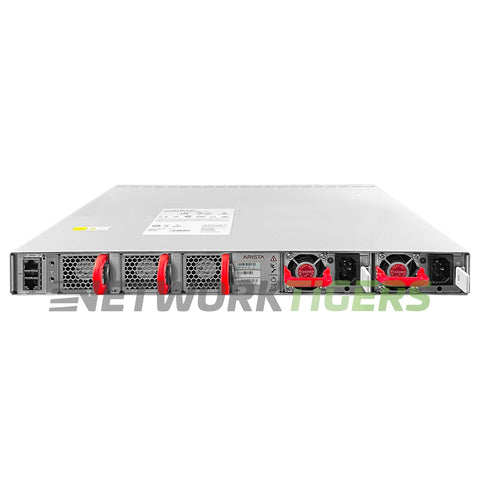

One 1050W AC power supply is included, with a second slot open. Arista lists the PoE budget at 916W with one 1050W supply, 1809W with two and 3666W with two 2000W supplies. Supported units are PWR-621-AC-RED (650W AC), PWR-1021-AC-RED (1050W AC), PWR-2021-AC-RED (2000W AC) and PWR-521-DC-RED (500W DC).

Three hot-swap FAN-7000-F modules (N+1) cool the 1RU chassis front-to-back (port-side intake), the only airflow offered. It weighs 16.5 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Matching spares include the FAN-7000-F fan module.

Check your rack depth, power feeds, and cold-aisle orientation before you order, since the airflow direction is set by the fans and power supplies installed.

This seller refurbished CCS-722XPM-48ZY8-F is tested, working, and covered by the NetworkTigers one-year warranty.
