Cisco Meraki MA-ANT-20 Dual-Band Omni Antenna Set MR72, MR74, MR76, MR86, MR84

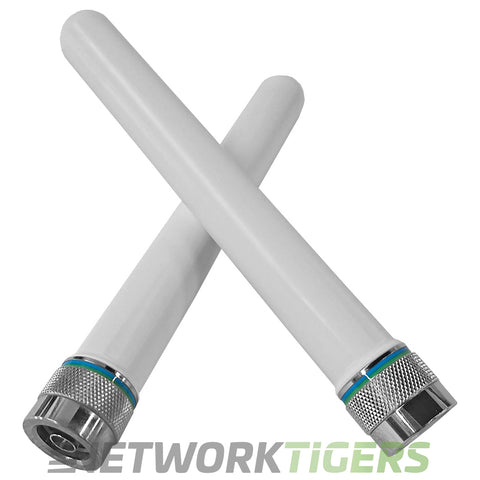

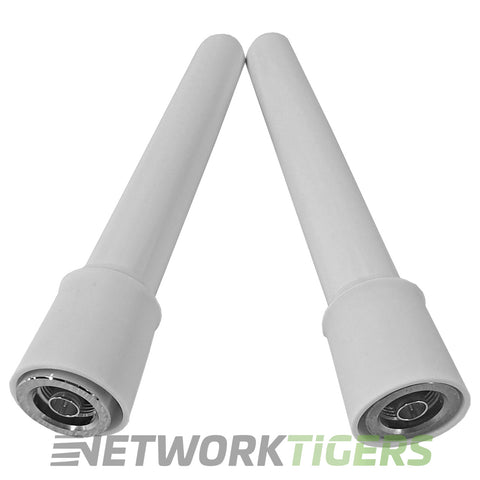

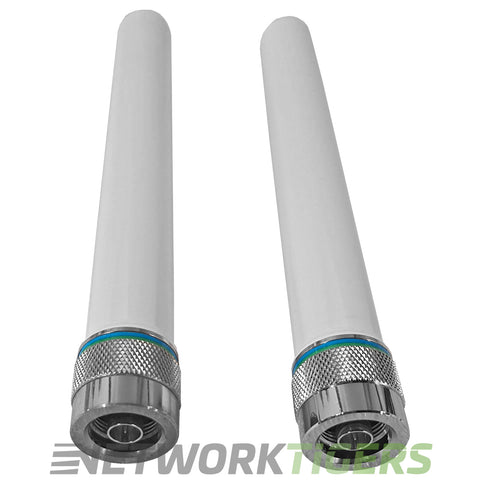

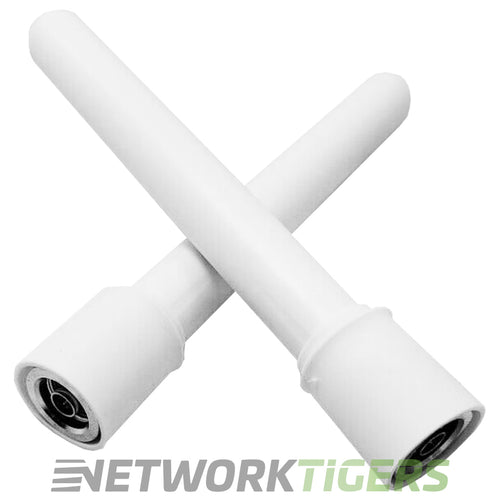

The Cisco Meraki MA-ANT-20 is a dual-band omnidirectional antenna set for Meraki outdoor access points with N-type antenna connectors. The set contains two antennas, each with 4 dBi of gain on 2.4 GHz and 7 dBi on 5 GHz, with a 360-degree horizontal and 45-degree vertical beam.

Omni antennas spread coverage evenly around the access point, which suits parking lots, courtyards, campus quads, and open warehouse yards where clients can be on any side. Each antenna is about 7.1 inches long and 1.0 inch in diameter and weighs about 0.2 lb.

Meraki lists the MA-ANT-20 for the MR58, MR62, MR66, MR72, MR74, MR76, and MR86. Outdoor Meraki access points such as the MR74, MR76, and MR86 use N-type antenna connectors, and each external antenna connects to the matching radio port on the AP. Plan cable runs short, since longer coax adds loss that cancels some of the antenna gain.

If you need to cover one direction instead of all around, the MA-ANT-25 dual-band patch antenna and the MA-ANT-27 dual-band sector antenna focus the signal. A compatible access point is the MR76-HW outdoor access point.

This seller refurbished Cisco Meraki MA-ANT-20 antenna set is tested, working, and covered by the NetworkTigers one-year warranty.
