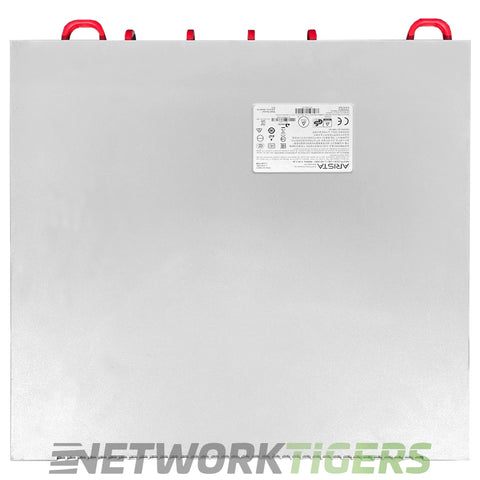

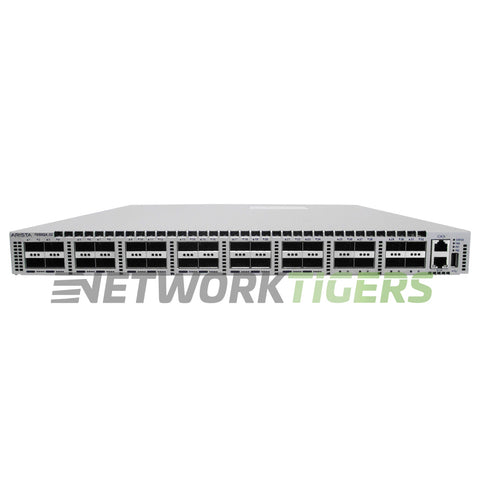

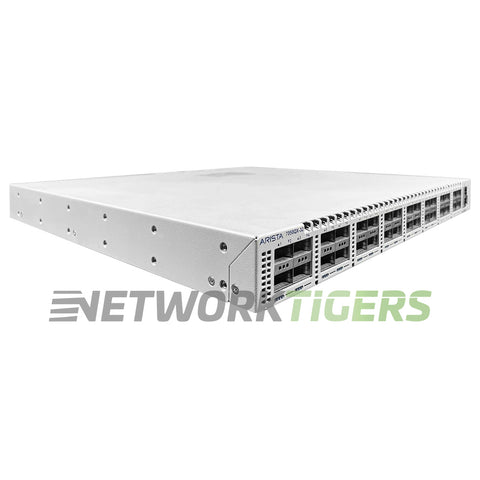

NEW Arista DCS-7050QX-32-F 32x 40GB QSFP+ Front-to-Back Airflow Switch
New

NEW Arista DCS-7050QX-32-F 32x 40GB QSFP+ Front-to-Back Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2834

Overview

The Arista DCS-7050QX-32-F switch delivers 2.56 Tbps of switching capacity and a forwarding rate of 1440 Mpps, making it suited for high-bandwidth applications. It features front-to-back airflow to support efficient cooling in data center deployments.

Equipped with 32x QSFP+ ports supporting up to 40GbE per port, this device provides extensive scalability for connecting modern devices or aggregating traffic. The switch handles large-scale networking needs with its MAC address table size capable of storing up to 288,000 entries while maintaining low latency at just 550 nanoseconds.

Arista DCS-7050QX-32-F: Arista 7050X switch with 32 40 Gigabit Ethernet QSFP+ uplink ports. This switch has front-to-rear airflow and dual 460W AC power supplies.


Specifications

  • Network Ports : 32x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Management Port, 1x USB port
  • SFP Modules : None included
  • Fan Modules AirFlow Direction : 4x FAN-7000-F - Front-to-Back Airflow
  • Power Supplies Included : 2x PWR-460AC-F - 460W AC Power Supplies Included - Front-to-Back Airflow
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1440 Mpps
  • MAC Address Table Size : 288,000
  • Latency : 550 ns
  • Rack Mounts : Not Included. Ordered Separately - KIT-7000, KIT-7001
  • Model Number : DCS-7050QX-32-F
  • Part Number : DCS-7050QX-32-F
  • Condition : New


Included

  • One (1) NEW Arista DCS-7050QX-32-F 32x 40GB QSFP+ Front-to-Back Airflow Switch as described above
