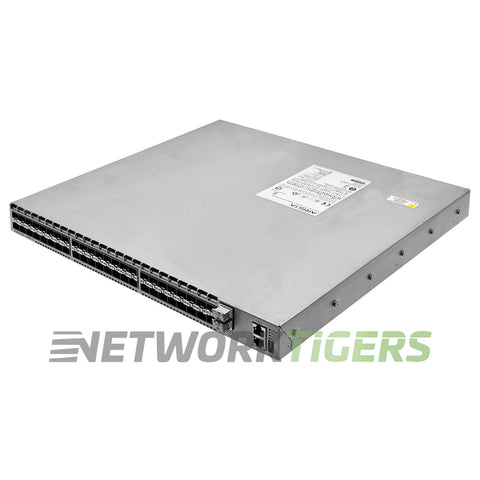

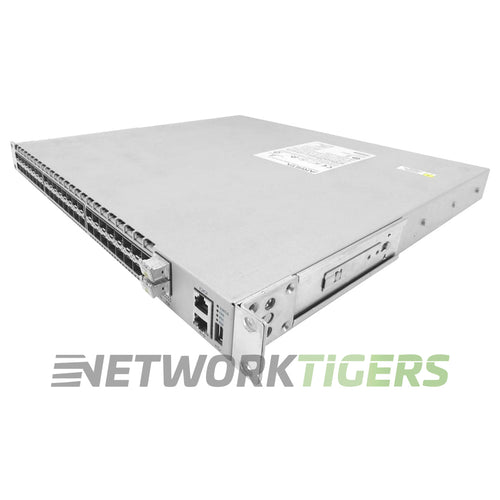

The Arista DCS-7050SX-72-R is a high-performance switch for data centers and large-scale networks. With 48x 10GB SFP+ ports, it has a switching capacity of 1.28 Tbps, ensuring efficient data transfer. The switch offers excellent forwarding rate capabilities with up to 960 million packets per second (Mpps).
One notable feature of this switch is its MAC address table size of 288,000 entries, allowing for effective network traffic management. The low latency of just 550 nanoseconds ensures quick response times.
This model also boasts a back-to-front airflow design to maintain optimal cooling in rack environments. This helps enhance system reliability by preventing overheating issues.
Arista DCS-7050SX-72-R: Arista 7050SX switch with 48x 10 Gigabit Ethernet SFP+ uplinks and 6x 40 Gigabit (through 2x MXP) uplinks. This switch has rear-to-front (back-to-front) airflow and dual AC power supplies.
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 2x MXP - Each MXP port can enable a choice of 3x 40GbE or 12x 10GbE
- Management Ports : 1x 1 Gigabit Ethernet RJ45, 1x RS-232 Serial RJ45, 1x USB
- Product Family : 7050SX Series
- CPU : Quad-Core x86
- VLAN ID's : 4096
- Packet Buffer : 12MB
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 4x FAN-7002-R Fans Included (N+1 redundant)
- Power Supplies Included : 2 x PWR-750AC-R 750W AC Power Supplies Included
- Switching Capacity : 1.28 Tbps
- Forwarding Rate : 960 Mpps
- MAC Address Table Size : 288,000
- Latency : 550 ns
- DRAM and Flash : Up to 8GB DRAM, 4GB Flash
- Model Number : DCS-7050SX-72-R
- Part Number : DCS-7050SX-72-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050SX-72-R 48x 10GB SFP+ 2x MXP Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
