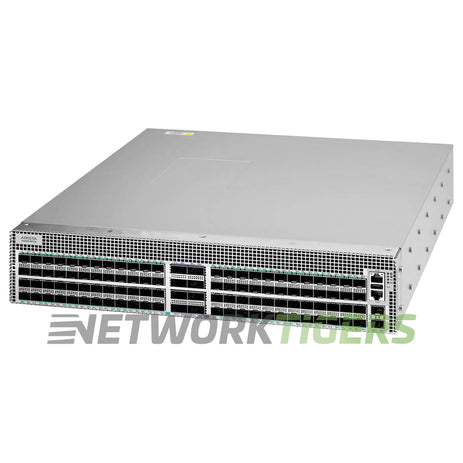

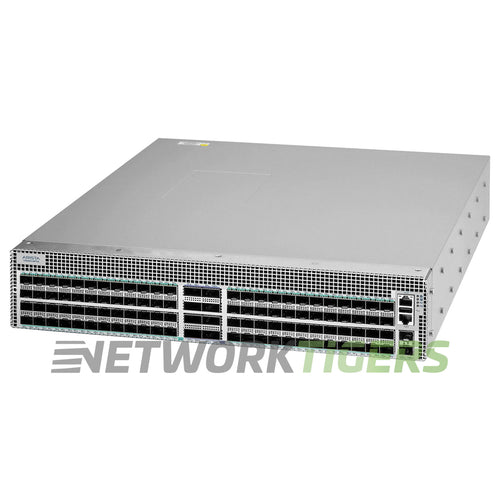

The DCS-7050SX3-96YC8-F is a 2RU 7050X3 switch with 96 SFP25 ports at 25GbE, eight 100GbE QSFP100 uplinks, and two 10GbE SFP+ ports.
Capacity is 6.4 Tbps (3.2 Tbps each way) at 2 Bpps, with 800 nanoseconds of latency and a 32 MB shared buffer. A quad-core x86 CPU with 8 GB of DRAM and 8 GB of flash runs the control plane. Typical and maximum draw are 218W and 453W.

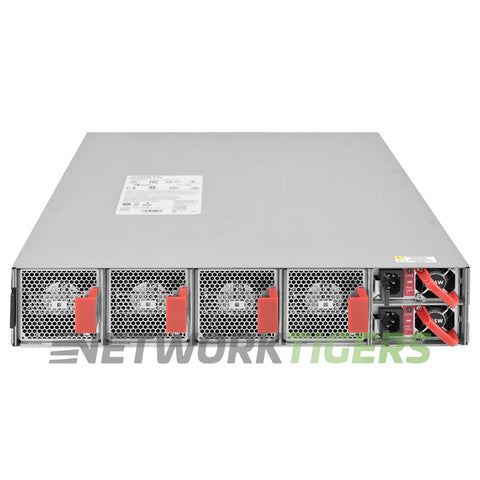

This unit is front-to-back (port-side intake) and uses red-handled supplies and fans. Arista also sells the opposite airflow version (-R), so match it to the rack. Two 1000W AC power supplies run 1+1 hot-swap, with PWR-1011-AC-RED or PWR-1011-DC-RED as spares. Four hot-swap FAN-7012M-RED fans provide N+1 cooling. Keep every fan and supply on the same airflow. The chassis measures 17.3 x 19.8 x 3.46 inches and weighs 43 lb. Management is through a 10/100/1000 Ethernet port, an RJ-45 RS-232 console, and USB.
Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7050SX3-96YC8-R with the opposite airflow. Matching spares include the PWR-1011-AC-RED power supply.
This seller refurbished DCS-7050SX3-96YC8-F is tested, working, and covered by the NetworkTigers one-year warranty.

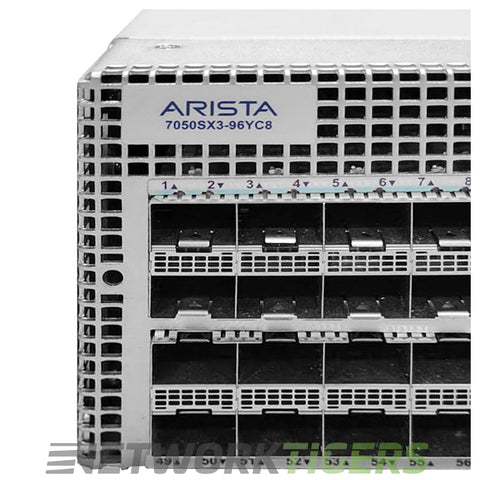

- Network Ports : 96x 25GbE SFP25, 8x 100GbE QSFP100, 2x 10GbE SFP+
- Uplink Ports : 8x 100GbE QSFP100
- Management Ports : 1x 10/100/1000 Ethernet, 1x RS-232 console (RJ-45), 1x USB
- CPU : Quad-Core x86
- Switch Version : Arista EOS
- AirFlow Direction : Front-to-back (port-side intake)
- Fan Module Options : FAN-7012M-RED
- Power Supplies Included : 2x 1000W AC, 1+1 hot-swap
- Power Supply Options : PWR-1011-AC-RED, PWR-1011-DC-RED
- PoE Budget : None
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 2 Bpps
- MAC Address Table Size : 288,000
- Latency : 800 ns
- DRAM and Flash : 8 GB DRAM, 8 GB flash
- Model Number : DCS-7050SX3-96YC8-F
- Part Number : DCS-7050SX3-96YC8-F
- Condition : Seller refurbished
- One (1) Seller refurbished Arista DCS-7050SX3-96YC8-F 96x 25GB SFP28 8x 100GB QSFP28 2x SFP+ F-B Air Switch as described above
- Four (4) Fan Modules Included
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
