The Arista DCS-7050TX-96-R is a versatile network switch for high-performance data centers. With 48x 10GB copper and 12x40GB (4x MXP) back-to-front airflow, it provides excellent connectivity options.
This switch boasts an impressive switching capacity of up to 1.92 Tbps and a forwarding rate of 1440Mpps. These features ensure efficient data transmission without reducing speed or performance.
With an extensive MAC address table size of 32,000, the DCS-7050TX-96-R can easily handle large-scale networks while maintaining optimal functionality. Available at low latency levels of just three μsec, it guarantees swift response times between connected devices.

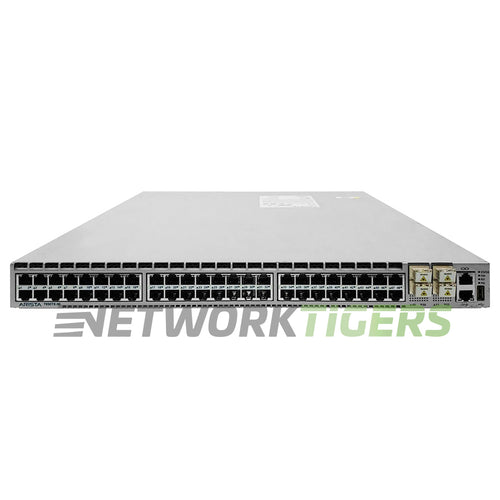

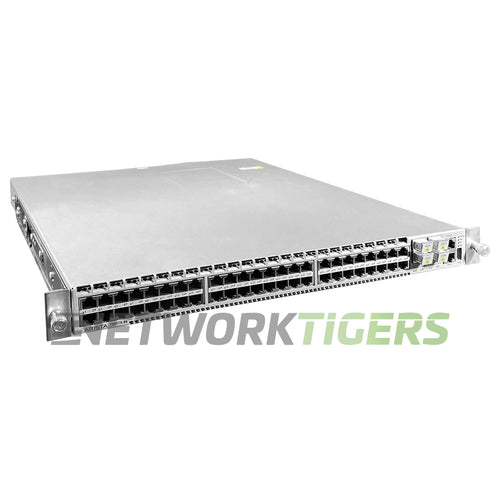

Arista DCS-7050TX-96-R 48x 10GB Copper 12x 40GB (4x MXP) B-F Air Switch
- Network Ports : 48x 10 Gigabit Ethernet RJ45
- Uplink Ports : 12x 40 Gigabit (4xMXP)
- Management Ports : 1x USB Port, 1x Gigabit Management
- CPU : High Performance x86 CPU
- VLAN's : 4096
- Packet Buffer : 12MB (Dynamic Buffer Allocation)
- Switch Version : Arista EOS
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 4x FAN-7002-R Fan Modules Included (N+1 redundant) - Back-to-Front Airflow
- Power Supplies Included : 2x PWR-500AC-R Power Supplies Included (1+1 redundant)
- Power Supply Options : PWR-500AC-F is Front-to-Back Airflow option.
- Switching Capacity : 1.92 Tbps
- Forwarding Rate : 1440 Mpps
- MAC Address Table Size : 32,000
- Latency : 3 μsec
- DRAM and Flash : 4GB DRAM, 4GB Flash
- Model Number : DCS-7050TX-96-R
- Part Number : JH587A
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050TX-96-R 48x 10GB Copper 12x 40GB (4x MXP) B-F Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
