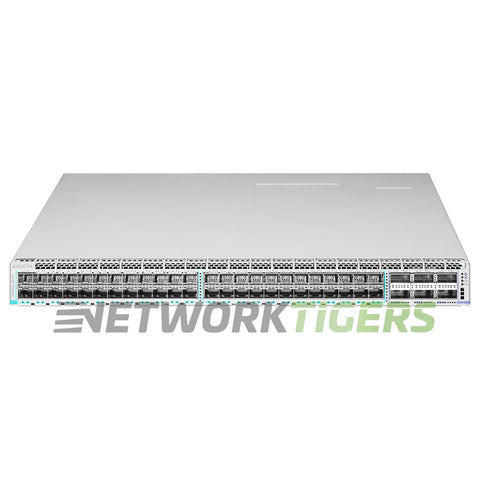

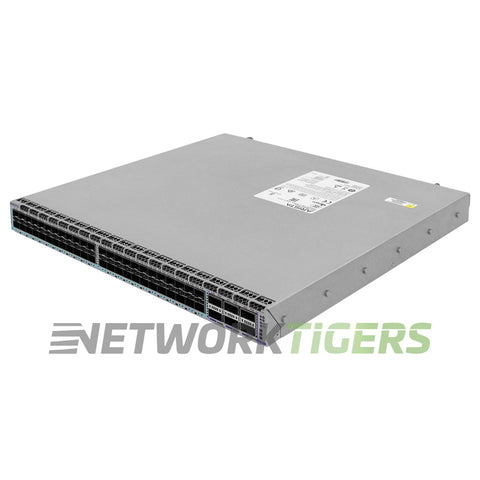

NEW Arista DCS-7060SX2-48YC6-R 48x 25GB SFP+ 6x 100GB QSFP B-F Airflow Switch
New

NEW Arista DCS-7060SX2-48YC6-R 48x 25GB SFP+ 6x 100GB QSFP B-F Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5791

Overview

The NEW Arista DCS-7060SX2-48YC6-R is a robust, high-performance switch for data center networking. With 48 SFP+ ports supporting 25GB speeds and six QSFP ports offering blazing-fast 100GB connectivity, this switch delivers an impressive switching capacity of up to 3.6 Tbps. It also has back-to-front airflow.

One notable feature of the DCS-7060SX2-48YC6-R is its low latency design, providing rapid response times with just 450ns delay – ideal for demanding applications where speed is crucial. The MAC address table size can accommodate up to a sizable amount of 136,000 entries.

This switch offers exceptional forwarding rate capabilities at around 2.7 billion packets per second (pps), ensuring quick and efficient packet delivery throughout your network infrastructure.

NEW Arista DCS-7060SX2-48YC6-R 48x 25GB SFP+ 6x 100GB QSFP B-F Airflow Switch


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP
  • Management Ports : 1x RS232 Management RJ45, 1x USB, 1x Gigabit Ethernet Management
  • CPU : Multi-Core x86
  • VLAN ID's : 4096
  • Packet Buffer : 22MB
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 4x FAN-7000-R Fan Modules included (N+1 redundant)
  • Power Supplies Included : 2x PWR-500AC-R Power Supplies (AC) included (1+1 Redundant)
  • Switching Capacity : 3.6 Tbps
  • Forwarding Rate : 2.7 Bpps
  • MAC Address Table Size : 136,000
  • Latency : 450ns
  • DRAM and Flash : 8GB DRAM, 4GB Flash
  • Model Number : DCS-7060SX2-48YC6-R
  • Part Number : DCS-7060SX2-48YC6-R
  • Condition : New


Included

  • One (1) NEW Arista DCS-7060SX2-48YC6-R 48x 25GB SFP+ 6x 100GB QSFP B-F Airflow Switch as described above
