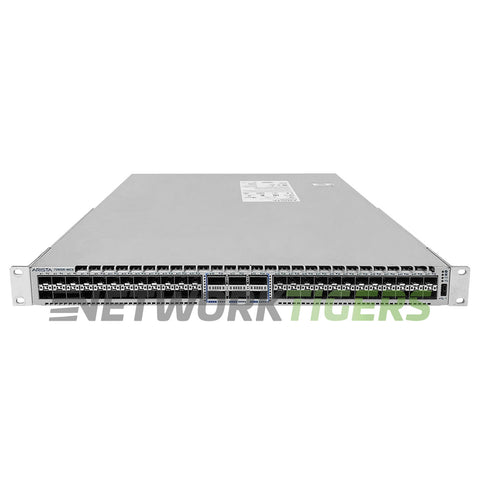

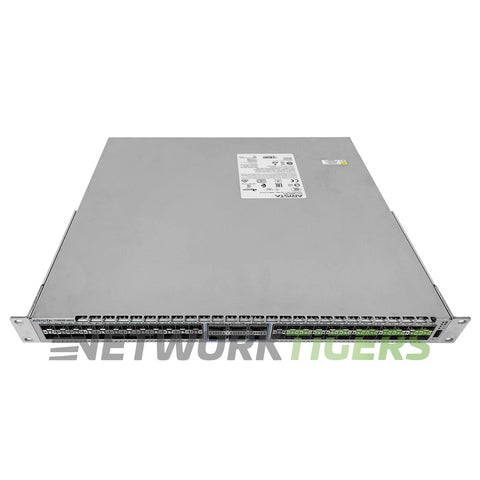

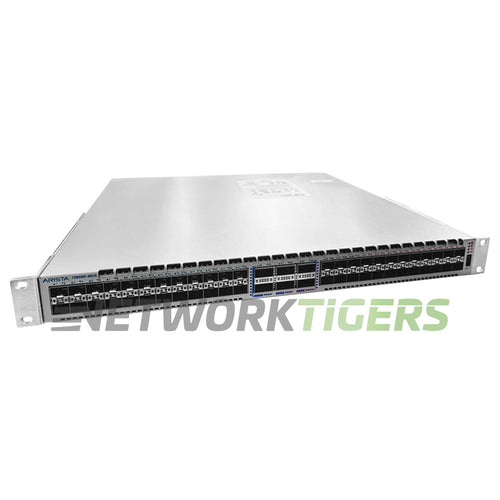

The Arista DCS-7280SR2K-48C6-M-R is a 1RU 7280R2K large-route switch router with 24 1/10/25GbE SFP25 ports, 24 1/10GbE SFP+ ports and 6 100GbE QSFP100 uplinks. Breakout allows up to 12 50G, 48 25G or 72 10G interfaces in total.
The K designation means larger route scale, 2M IPv4 LPM and 1.4M IPv6 LPM entries with 768K MAC addresses. It is only sold as -M, meaning 32 GB DRAM plus an SSD, not MACsec. Capacity is 2.88 Tbps and 835 Mpps, latency starts at 3.8 microseconds per Arista, and the packet buffer is 4 GB. AlgoMatch and accelerated sFlow are supported.

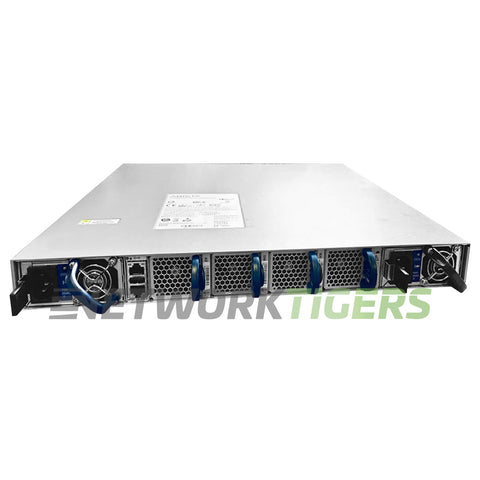

Two hot-swap 750 W AC supplies (1+1) and four hot-swap fans (N+1) are included. Airflow is back-to-front (port-side exhaust), using blue-handle PWR-747AC-BLUE supplies and FAN-7000H-R fans. Arista also sells the front-to-back DCS-7280SR2K-48C6-M-F, so match the rack. Typical power is 215 W, maximum 370 W.
NEBS compliant, it weighs 20 lb and measures 19 x 16 x 1.75 inches. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Matching spares include the FAN-7000H-F fan module.
This seller refurbished DCS-7280SR2K-48C6-M-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 1/10/25GbE SFP25 + 24x 1/10GbE SFP+
- Uplink Ports : 6x 100GbE QSFP100 (max 12x 50G / 48x 25G / 72x 10G total)
- Management Ports : 1x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45 console, 1x USB
- Memory : Expandable Memory, SSD
- Switch Version : Arista EOS
- AirFlow Direction : Back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000H-F, FAN-7000H-R
- Power Supplies Included : 2x AC 750 W (hot-swap, 1+1)
- Power Supply Options : PWR-747AC-RED (front-to-rear), PWR-747AC-BLUE (rear-to-front) 750 W AC; PWR-1900-DC-F, PWR-1900-DC-R 1900 W DC
- PoE Budget : None
- Switching Capacity : 2.88 Tbps
- Forwarding Rate : 835 Mpps
- MAC Address Table Size : 768,000
- Latency : from 3.8 microseconds
- DRAM and Flash : 32 GB DRAM (expanded memory) plus SSD, quad-core x86
- Model Number : DCS-7280SR2K-48C6-M-R
- Part Number : DCS-7280SR2K-48C6-M-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7280SR2K-48C6-M-R 7280R2 Series 24x 10G, 24x 25G 6x 100G QSFP SSD R-F 2x AC Switch Router as described above
- One (1) Set of Rack Mount Brackets Included
- Two (2) AC Power Supplies Included
- Two (2) Power Cords Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Fan Modules Not Included
