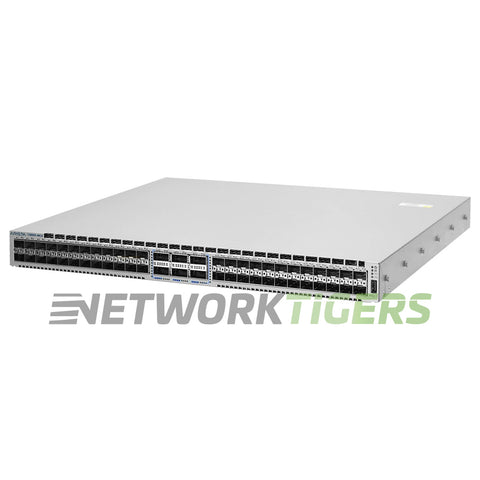

NEW Arista DCS-7280SRA-48C6-R 48x 10G SFP+ 6x 100G QSFP B-F Air Switch
New

NEW Arista DCS-7280SRA-48C6-R 48x 10G SFP+ 6x 100G QSFP B-F Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4308

Overview

The NEW Arista DCS-7280SRA-48C6-R switch is designed for data centers requiring high performance and scalability. With a switching capacity of 2.16 Tbps and a forwarding rate of 720 Mpps, this switch offers efficient packet processing to keep networks running smoothly.

The MAC address table size of 768,000 allows for extensive layer two network configurations. Featuring AlgoMatch technology, the Arista DCS-7280SRA-48C6-R switch ensures accurate flow classification for optimized traffic management. This model also includes PoE budget support and comes equipped with 48x 10G SFP+ ports and six additional QSFP B-F Air interfaces, providing flexibility in connectivity options.

NEW Arista DCS-7280SRA-48C6-R 7280R 48x 10G SFP+ 6x 100G QSFP B-F Air Switch


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RS-232 Management, 2x USB, 1x RJ45 Serial Console.
  • Product Family : 7280R Series
  • VLAN ID's : 4096
  • CPU : Quad-Core x86
  • AlgoMatch : Yes
  • Switch Version : Arista EOS
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 4x FAN-7000H-R Fan Modules Included
  • Power Supplies Included : 2x PWR-500AC-R 500W AC Power Supplies Included
  • Power Supply Options : PWR-500AC-R, PWR-500AC-F, PWR-500-DC-F, PWR-500-DC-R, PWR-745AC-F, PWR-745AC-R
  • Packet Buffer : 4GB
  • Switching Capacity : 2.16 Tbps
  • Forwarding Rate : 720 Mpps
  • MAC Address Table Size : 768,000
  • Latency : From 3.8us
  • DRAM and Flash : 8 GB (32GB optional) DRAM, 4GB Flash
  • Model Number : DCS-7280SRA-48C6-R
  • Part Number : DCS-7280SRA-48C6-R
  • Condition : New


Included

  • One (1) NEW Arista DCS-7280SRA-48C6-R 48x 10G SFP+ 6x 100G QSFP B-F Air Switch as described above
