The Extreme EC720001X-E6 VSP 7254XSQ switch features a Switching Capacity of 2.56Tbps and a Forwarding Rate of 1,428 Mpps. With a MAC Address Table Size of 224,000, this switch offers nominal latency at less than <480nsec.
The device includes four ports for 10GB SFP+ connections and six ports for high-speed data transfer using the QSFP+ interface. Designed to meet the demands of modern networking environments, this switch provides reliable performance with low latency levels suitable for various applications requiring rapid data processing speeds.
By incorporating multiple connectivity options and large MAC address table size capabilities into its design, the Extreme EC720001X-E6 VSP is ideal for organizations seeking robust network infrastructure solutions that can handle heavy traffic loads efficiently without compromising speed or reliability.

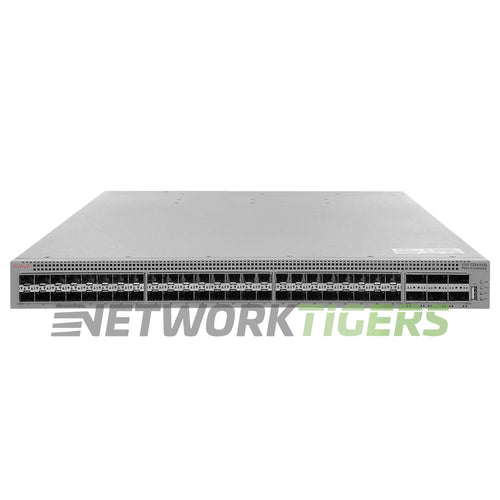

Extreme EC720001X-E6 VSP 7254XSQ 4x 10GB SFP+ 6x 40GB QSFP+ Switch
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x USB
- Port-based VLANs : 4,059
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 3x EC7200BTF-E6 Fan Modules Included
- Power Supplies Included : 2x EC7205A1B-E6-02 PSU's Included
- Switching Capacity : 2.56 Tbps
- Forwarding Rate : 1,428 Mpps
- MAC Address Table Size : 224,000
- Nominal Latency : <480nsec
- Model Number : EC720001X-E6
- Part Number : EC720001X-E6
- Condition : Seller refurbished
- One (1) Seller refurbished Extreme EC720001X-E6 VSP 7254XSQ 4x 10GB SFP+ 6x 40GB QSFP+ Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
