NEW Juniper EX2300-48MP 48x 1GB RJ45 16x MultiGB PoE+ RJ45 6x 10GB SFP+ Switch
New

NEW Juniper EX2300-48MP 48x 1GB RJ45 16x MultiGB PoE+ RJ45 6x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

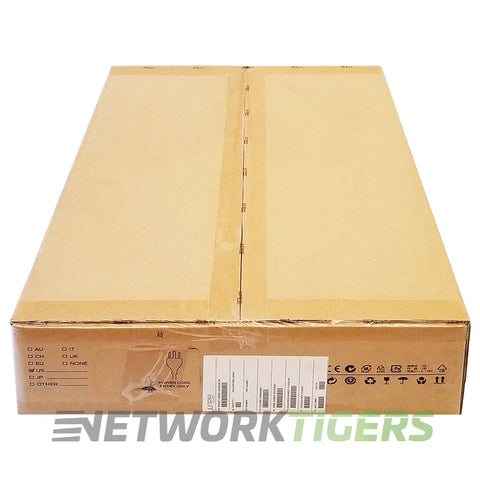

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3807
UPC: 832938084346

Overview

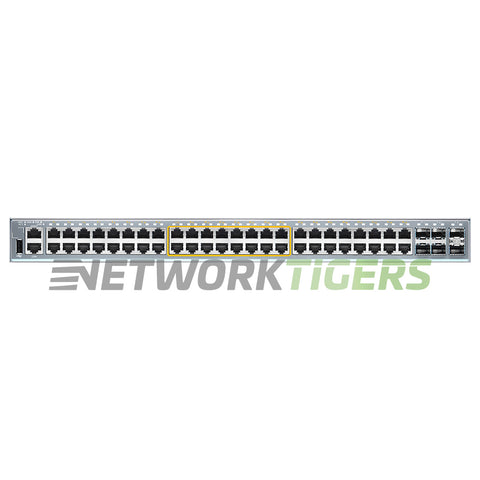

The Juniper EX2300-48MP switch offers 48 ports of Gigabit Ethernet with Power over Ethernet Plus (PoE+), as well as 16 Multi-Gigabit RJ45 ports and six 10 Gigabit SFP+ uplink ports. With a switching capacity of 176 Gbps and a forwarding rate of 130 Mpps, this switch is suitable for medium to large-scale network environments.

The device has a MAC address table size of up to 16000 entries, ensuring efficient handling of diverse networking tasks. Ideal for organizations looking to expand their network capabilities without compromising performance or reliability, the Juniper EX2300-48MP delivers high-speed connectivity with PoE support in an easy-to-manage form factor.

Juniper EX2300-48MP: EX2300 32-port 10/100/1000BASE-T PoE+, 16-port 10/100/1000/2500BASE-T PoE+, 6x 1/10GbE SFP/ SFP+ (optics sold separately).


Specifications

  • Network Ports : 32x 1 Gigabit Ethernet PoE+ RJ45, 16x MultiGigabit PoE+ RJ45 (10/100/1000/2500Mb)
  • Uplink Ports : 6x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Console, 1x Gigabit Ethernet Management, 1x mini-USB Console, 1x Mini USB
  • Number of VLANs supported : 4093
  • Power Supplies Included : 1x Internal AC Power Supply
  • CPU : 1.25GHz ARM CPU
  • PoE Budget : 740 W
  • Switching Capacity : 176 Gbps
  • Forwarding Rate : 130 Mpps
  • MAC Address Table Size : 16000
  • DRAM and Flash : 8GB Flash, 2GB DRAM
  • Model Number : EX2300-48MP
  • Part Number : 0083293807087, EX2300-48P, EX2300-48T, EX230048T
  • Condition : New


Included

  • One (1) NEW Juniper EX2300-48MP 48x 1GB RJ45 16x MultiGB PoE+ RJ45 6x 10GB SFP+ Switch as described above
