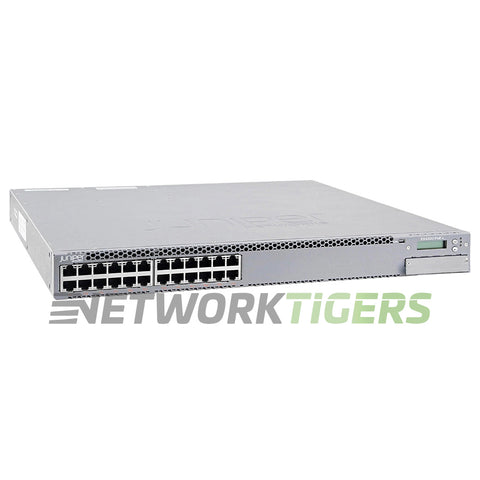

The Juniper EX4300-24P is a high-performance switch for businesses needing reliable network connectivity. With its 24x 1GB PoE+ RJ-45 ports and support for up to four 40GB QSFP+ modules, this switch offers fast and flexible options for connecting multiple devices.
Equipped with a front-to-back airflow design, the EX4300 ensures efficient cooling while maintaining optimal system performance. It boasts a POE budget of 550W, making it capable of powering various power-hungry devices like IP phones or wireless access points.
With switching capacity reaching an impressive rate of 448 Gbps and forwarding at up to 333 Mpps (million packets per second), this switch demonstrates excellent throughput capabilities necessary for demanding enterprise environments. Its MAC Address Table size supports up to 64,000 entries, ensuring seamless communication between connected devices.
Juniper EX4300-24P: 24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately).
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ - Can be used as Virtual Chassis Ports (on rear of switch) - stacking cables sold separately
- Management Ports : 1x RJ-45, 1x Serial Console RJ-45, 1x USB
- Module Slots : 1x Slot - None included. Ordered separately
- Module Options : EX-UM-4X4SFP (4-Port SFP+ Uplink Module) - Not included
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x EX4300-FAN Fan Modules Included
- Power Supplies Included : 1x JPSU-715-AC-AFO Power Supply Included - Second power supply is optional (ordered separately)
- PoE Budget : 550W
- Switching Capacity : 448 Gbps
- Forwarding Rate : 333 Mpps
- MAC Address Table Size : 64,000
- Model Number : EX4300-24P
- Part Number : EX4300-24P, EX4300-24PR
- Condition : New
- One (1) NEW Juniper EX4300-24P 24x 1GB PoE+ RJ-45 4x 40GB QSFP+ F-B Airflow Switch as described above
