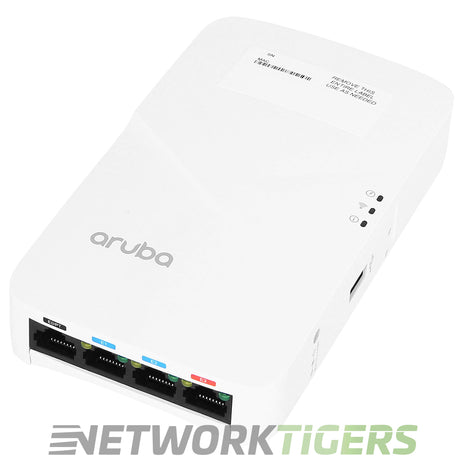

HPE Aruba JY680ACM CM AP-303H (US) Dual-Radio 802.11ac 2x2 MU-MIMO WAP

HPE Aruba JY680ACM CM AP-303H (US) Dual-Radio 802.11ac 2x2 MU-MIMO WAP

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-8142

Overview

The HPE Aruba JY680ACM AP-303H Dual-Radio wireless access point supports the 802.11ac data link protocol, ensuring reliable connectivity for dual-frequency operation at 2.4GHz and 5GHz bands.

The device features integrated moderately directional antennas configured for a maximum antenna gain of up to 4.3dBi on the lower band (2.4GHz) and up to 6.2dBi on the higher band (5GHz), leveraging its capability in scenarios requiring efficient bandwidth distribution across connected devices via MU-MIMO technology with a configuration of two spatial streams per frequency range (2x2 MIMO).

Its compact form factor provides several deployment options while maintaining compatibility with existing network standards under both GHz ranges applicable within FCC constraints, denoting US radio frequencies.

HPE Aruba JY680ACM CM AP-303H (US) Dual-Radio 802.11ac 2x2 MU-MIMO WAP


Specifications

  • LAN : 3x 1 Gigabit RJ45
  • Uplink options : 1x 1 Gigabit RJ45
  • Management Ports : 1x USB 2.0
  • Antenna Options : 2x integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz
  • Power Options : The AP supports direct DC power and Power over Ethernet (PoE) - Power Sources sold separately
  • Frequency : 2.4GHz, 5 GHz
  • Data Link Protocol : 802.11ac
  • Mounts : Not included. Sold Separately. 1x JY686A or 1 x JY688A
  • Model Number : JY680ACM
  • Part Number : JY680ACM
  • Condition : Seller refurbished

Datasheet

More information on this HPE JY680ACM.

Included

  • One (1) Seller refurbished HPE Aruba JY680ACM CM AP-303H (US) Dual-Radio 802.11ac 2x2 MU-MIMO WAP as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Wall Mount Bracket Not Included
