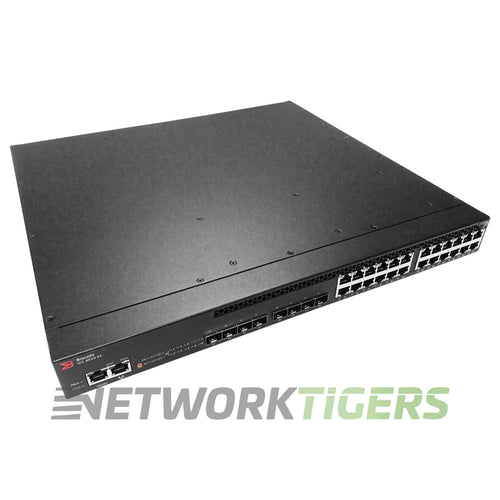

The Brocade ICX6610-24-PE switch is a reliable and efficient choice for network infrastructure. With 24x 1GB RJ-45 ports, it offers ample connectivity options. It has 8x 1GB SFP slots and 4x 40GB QSFP+ interfaces for versatile deployment possibilities.
Featuring an aggregated stacking bandwidth of up to 1,230 Gbps, this switch enables seamless expansion as your networking needs grow. The switching capacity of the ICX6610-24 stands at a respectable rate of up to 528 Gbps while maintaining wire-speed forwarding rates at 396 Mpps (million packets per second).
With its MAC Address Table Size capable of accommodating 32,000 entries,this Brocade switch provides high scalability options that can handle large-scale networks effectively.
Brocade ICX6610-24-PE: 24x 1 GbE RJ45 ports, plus 8x 1 GbE SFPP uplink ports (upgradable to 10 GbE). 4x 40 GbE QSFP stacking ports. 1x power-supply-side exhaust, hot-swappable fan assembly, and 250 W power supply. Premium software.
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 8x 1 Gigabit Ethernet SFP, 4x 40 Gigabit Ethernet QSFP+ (can be used for stacking)
- Stacking Ports : See "Uplink Ports"
- Switch Version : Premium Software (P)
- AirFlow Direction : Front-to-Back Airflow (PSU-Side Exhaust)
- Fan Module Options : Hot Swappable Fan Assembly
- Power Supplies Included : 1x 250W AC PSU Included
- Aggregated Stacking Bandwidth : 1,230 Gbps
- Switching Capacity : 528 Gbps
- Forwarding Rate : 396 Mpps (wire speed)
- MAC Address Table Size : 32,000
- Model Number : ICX6610-24-PE
- Part Number : ICX6610-24-PE
- Condition : Seller refurbished
- One (1) Seller Refurbished Brocade ICX6610-24-PE 24x 1GB RJ-45 8x 1GB SFP 4x 40GB QSFP+ F-B Air (P) Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
