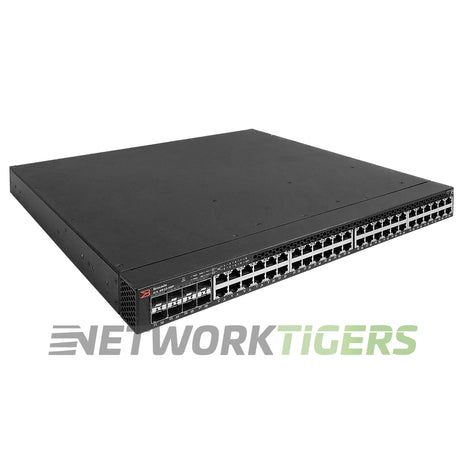

Brocade ICX6610-48P-I 48x 1GB PoE+ RJ45 8x 1GB SFP B-F Airflow (Base) Switch

Brocade ICX6610-48P-I 48x 1GB PoE+ RJ45 8x 1GB SFP B-F Airflow (Base) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6309

Overview

The Brocade ICX6610-48P-I switch features 48 PoE+ RJ45 ports and 8 SFP uplink ports, providing a switching capacity of 576 Gbps. With a forwarding rate of wire speed at 432 Mpps, this base model supports high-performance networking needs.

The MAC address table size is capable of storing up to 32,000 addresses for efficient data handling. Designed for demanding environments, the Brocade ICX6610-48P-I offers reliable connectivity with airflow options ensuring optimal cooling performance. Ideal for businesses requiring advanced network capabilities, this switch delivers consistent and secure operation in various network setups without compromising on quality or performance standards.

Brocade ICX6610-48P-I: 48-port 1 GbE RJ45 PoE+, plus 8x 1 GbE SFPP uplink ports (upgradable to 10 GbE). 4x 40 GbE QSFP stacking ports. 1 power-supply-side intake, hot-swappable fan assembly, and 1,000 W power supply. Base software.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 8x 1 Gigabit Ethernet SFP
  • Management Ports : 1x RJ45 Serial Console, 1x Gigabit Management RJ45
  • Stacking Ports : 4x 40 Gigabit QSFP+ Stacking Ports
  • Stacking Cable Options : The Brocade ICX 6610 uses standard 40 GbE ports and QSFP cables for stacking
  • Switch Version : Base Software
  • AirFlow Direction : Back-to-Front Airflow (PSU-Side Intake Airflow)
  • Fan Module Options : 1x Hot Swappable Fan Assembly - Back-to-Front Airflow (PSU-Side Intake Airflow)
  • Power Supplies Included : 1x 1000W AC PSU Included - 2x Slots - Back-to-Front Airflow (PSU-Side Intake Airflow)
  • PoE Budget : 1,500 W
  • Switching Capacity : 576 Gbps
  • Forwarding Rate : 432 Mpps (wire speed)
  • MAC Address Table Size : 32,000
  • Model Number : ICX6610-48P-I
  • Part Number : ICX6610-48P-I
  • Condition : Seller refurbished

Datasheet

More information on this Brocade ICX6610-48P-I.

Included

  • One (1) Seller Refurbished Brocade ICX6610-48P-I 48x 1GB PoE+ RJ45 8x 1GB SFP B-F Airflow (Base) Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
