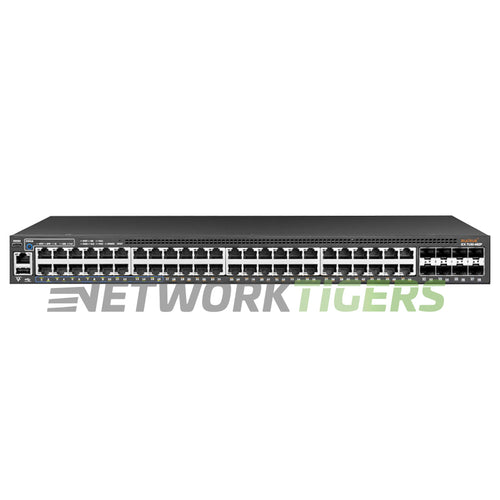

The Ruckus ICX7150-48ZP-E8X10GR is a highly capable switch designed to meet the demands of modern networks. With 16x 2.5GB PoH RJ-45 ports, it allows for high-speed data transfers and reliable connectivity.
This switch features 32x 1GB PoE+ ports that can power devices such as IP phones or wireless access points directly through the Ethernet cable.
With an impressive switching capacity of 304 Gbps and a forwarding rate of up to 226 Mpps, you can expect fast and efficient performance when transferring large amounts of data across your network.
The ICX7150-48ZP-E8X10GR has a generous MAC address table size which supports up to 16,384 addresses.
Ruckus ICX7150-48ZP-E8X10GR: Ruckus ICX 7150 Z-Series switch, 16x 100/1000 Mbps/2.5 Gbps PoH ports, 32x 10/100/1000 PoE+ ports, 8x 10 GbE SFP+ stacking/uplink-ports (max 4 for stacking), 1x 920 W AC power supply, 1x fan, 740 W PoE budget, L3 features (OSPF, VRRP, PIM, PBR).
- Network Ports : 16x 100/1000 Mbps/2.5 Gigabit Ethernet PoH RJ-45, 32x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 8x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
- Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
- AirFlow Direction : Front to Back Airflow
- Fan Module Options : 1x Fan Module Included
- Power Supplies Included : 2x PSU Slots - 1x 920W PSU Included
- PoE Budget : 740W
- Switching Capacity : 304 Gbps
- Forwarding Rate : 226 Mpps
- MAC Address Table Size : 16,384
- DRAM and Flash : 1GB (DRAM), 2GB (Flash)
- Model Number : ICX7150-48ZP-E8X10GR
- Part Number : ICX7150-48ZP-E8X10GR
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7150-48ZP-E8X10GR 16x 2.5GE PoH RJ-45 32x GE PoE+ 8x 10G SFP+ Switch as described above
- One (1) Power Cords Included
- One (1) AC Power Supplies Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
