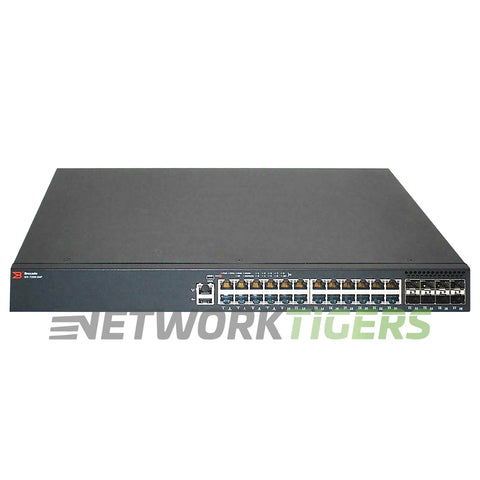

NEW Ruckus Brocade ICX7250-24P-2X10G 24x 1GB PoE+ RJ45 8x SFP S-B Air Switch
New

NEW Ruckus Brocade ICX7250-24P-2X10G 24x 1GB PoE+ RJ45 8x SFP S-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7911

Overview

The NEW Ruckus Brocade ICX7250-24P-2X10G is a high-performance switch designed for modern networks. With 24x 1GB PoE+ RJ45 ports and 8x SFP slots, this switch offers flexible connectivity options. The PoE budget of 370W ensures that power-hungry devices can be easily accommodated.

Featuring a switching capacity of up to 208 Gbps and a forwarding rate of up to 154 Mpps, this switch provides seamless data transfer even in busy network environments. The MAC Address Table Size of 16,384 allows for efficient management of connected devices.

Ruckus ICX7250-24P-2X10G: Ruckus ICX 7250 Switch, 24x 10/100/1000 PoE+ ports, 6x 1 GbE SFP and 2x 10 GbE SFP+ uplink/stacking ports upgradable to up to 8x 10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP), side-to-back airflow.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 6x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+ (upgradable to up to 8x 10GB SFP+ with ICX7250-8X10G-LIC-POD license)
  • Management Ports : 1x RJ45 Network Management, 1x Mini USB, 1x USB Storage
  • Stacking Ports : 10GB SFP+ ports can be used for stacking. Up to 4x 10GB SFP+ ports per switch can be used for stacking. This switch features 2x 10GB SFP+ Stacking Ports when shipped (See Uplink Ports)
  • Stacking Options : Up to 12 ICX7250 switches can be stacked depending on the number of 10GB SFP+ ports enabled.
  • Stacking Cable Options : DAC Cables can be used for stacking
  • Product Family : ICX 7250 Series
  • Packet Buffer : 2 MB
  • AirFlow Direction : Side to Back Airflow
  • Fan Module Options : 1x Integrated Fan
  • Power Supplies Included : 1x Internal AC Power Supply
  • Max VLAN's : 4,096
  • PoE Budget : 370W
  • Switching Capacity : 208 Gbps
  • Forwarding Rate : 154 Mpps
  • MAC Address Table Size : 16,384
  • Latency : 1.5 µs
  • DRAM and Flash : 2 GB DRAM, 2 GB Flash
  • Model Number : ICX7250-24P-2X10G
  • Part Number : ICX7250-24P-2X10G
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7250-24P-2X10G 24x 1GB PoE+ RJ45 8x SFP S-B Air Switch as described above
