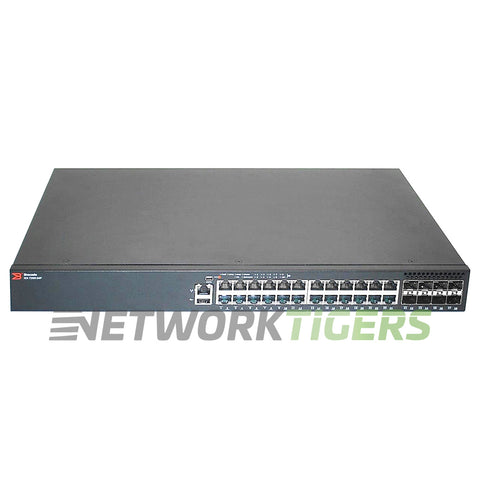

NEW Ruckus Brocade ICX7250-24P 24x 1GB PoE+ RJ45 8x 1GB SFP S-B Airflow Switch
New

NEW Ruckus Brocade ICX7250-24P 24x 1GB PoE+ RJ45 8x 1GB SFP S-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2793

Overview

The Ruckus Brocade ICX7250-24P is a versatile and powerful switch for network connectivity in various settings. With 24 PoE+ RJ45 ports, it provides reliable power to connected devices, while the additional 8 SFP ports offer flexibility for fiber connections.

This switch has a robust PoE budget of 370W, ensuring that your powered devices receive sufficient power without any performance issues. It also boasts impressive specifications, such as a switching capacity of 208 Gbps and a forwarding rate of up to 154 Mpps, guaranteeing fast and efficient data transmission within your network.

With its large MAC address table size of 16,384 entries and low latency (1.5 µs), this switch can handle high traffic volumes with minimal delays or packet loss.

Brocade ICX7250-24P: Brocade ICX 7250 Switch, 24x 10/100/1000 PoE+ ports, 8x 1 GbE SFP upgradable to up to 8x 10 GbE SFP+ uplink/stacking-ports with license, 370 W PoE budget, basic Layer 3 (static routing and RIP), side-to-back airflow.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 8x 1 Gigabit Ethernet SFP (Upgradable to 10 Gigabit Ethernet SFP+ with separate license)
  • Management Ports : 1x RJ45 Management, 1x Mini USB Type B, 1x USB Type A
  • Stacking Ports : Uplink ports can be used for stacking ONLY once upgraded to 10GB ports - ICX7250-2X10G-LIC-POD, ICX7250-8X10G-LIC-POD (licences not sold by NetworkTigers)
  • Product Family : ICX 7250 Series
  • Packet Buffer : 2 MB
  • Max VLAN's : 4,096
  • AirFlow Direction : Side-to-Back Airflow
  • Power Supplies Included : 1x Internal AC Power Supply - Side-to-Back Airflow
  • PoE Budget : 370 W
  • Switching Capacity : 208 Gbps
  • Forwarding Rate : 154 Mpps
  • MAC Address Table Size : 16,384
  • Latency : 1.5 µs
  • DRAM and Flash : 2 GB DRAM, 2GB Flash
  • Model Number : ICX7250-24P
  • Part Number : ICX7250-24P
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7250-24P 24x 1GB PoE+ RJ45 8x 1GB SFP S-B Airflow Switch as described above
