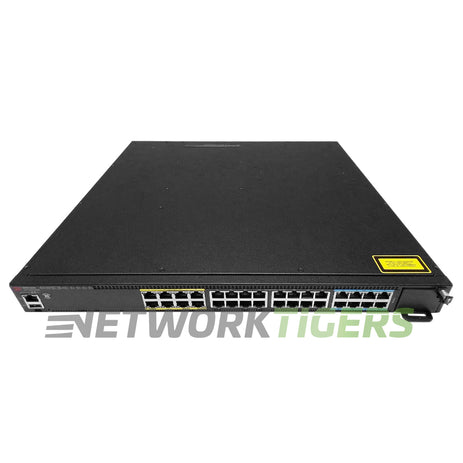

The Ruckus Brocade ICX7450-32ZP switch is a high-performance, stackable solution that offers market-leading stacking density. With up to 12 switches per stack, it provides an impressive number of ports (576x 1 GbE and 144x 1/10 GbE) for increased scalability.
With a switching capacity of 328 Gbps and a forwarding rate of 244 Mpps, this switch ensures fast and reliable data transfer. The MAC address table size can accommodate up to 32,768 entries.
The aggregate stacking bandwidth is rated at an impressive rate of 960 Gbps. This means efficient communication between multiple devices within the network.
Ruckus ICX7450-32ZP: 24-port 1 GbE and 8-port 2.5 GbE switch PoE+ with three modular slots for optional uplink/stacking ports. Power supplies, fans, and modules need to be ordered separately.
- Network Ports : 24x 1 Gigabit Ethernet SFP, 8x 2.5 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of the ICX7400-4X10GF Module) - Module not included - See Module Slots and Options
- Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ-45 Gigabit Ethernet Management port, 1x USB port
- Stacking Ports : 2x 40 Gigabit QSFP+ Stacking/ Uplink (through the use of 2x ICX7400-1X40GQ Modules) - Module not included - See Module Slots and Options
- Stack Members : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
- Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch)
- Module Options : ICX7400-4X1GF, ICX7400-4X10GF M, ICX7400-4X10GC, ICX7400-1X40GQ, CX7400-SERVICE-MOD - None Included
- Fan Module Options : 2x Fan Modules Slots - Options are ICX-FAN10-E, ICX-FAN10-I
- Power Supplies Included : 2x PSU Slots
- Power Supply Options : RPS15-E, RPS15-I
- Switching Capacity : 328 Gbps
- Forwarding Rate : 244 Mpps
- MAC Address Table Size : 32,768
- Aggregate Stacking Bandwidth : 960 Gbps
- Model Number : ICX7450-32ZP
- Part Number : ICX7450-32ZP
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus Brocade ICX7450-32ZP 24x 1GB SFP 8x 2.5GB PoE+ RJ-45 3x Exp Slots Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Cord Not Included
- Power Supplies Not Included
- Network Modules Not Included
- Transceiver Modules Not Included
- Fan Modules Not Included
