NEW Ruckus Brocade ICX7450-48-E 48x 1GB RJ-45 F-B Air Switch w/ 3x Exp Modules
New

NEW Ruckus Brocade ICX7450-48-E 48x 1GB RJ-45 F-B Air Switch w/ 3x Exp Modules

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8821
UPC: 080479261775

Overview

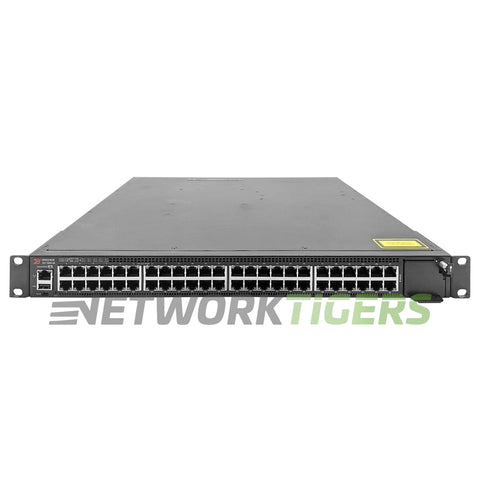

The Ruckus Brocade ICX7450-48-E is a high-performance switch designed for enterprise networks. With its 48x 1GB RJ-45 front-to-back airflow and support for up to three expansion modules, this switch can provide reliable connectivity for various network devices.

Featuring a switching capacity of 336 Gbps and a forwarding rate of 250 Mpps, the ICX7450-48-E ensures fast data transfer across your network. It also boasts an impressive MAC address table size of 32,768 addresses, allowing efficient routing and delivery of packets.

This switch offers advanced features like VLAN tagging, IPv6 transition mechanisms (such as dual-stack), QoS prioritization based on DiffServ protocol standards, LACP link aggregation support with load balancing capabilities - all aimed at optimizing network performance.

Ruckus ICX7450-48-E: 48-port 1 GbE switch bundle includes 4×10 GbE SFP+ uplinks/stacking, 2×40 GbE QSFP+ uplinks/stacking, 1×250 W AC power supply and one fan, front-to-back airflow.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ-45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of the ICX7400-4X10GF Module)
  • Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ-45 Gigabit Ethernet Management port, 1x USB port
  • Stacking Ports : 2x 40 Gigabit QSFP+ Stacking/ Uplink (through the use of 2x ICX7400-1X40GQ Modules)
  • Stack Members : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
  • Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch)
  • Module Options : 1x ICX7400-4X10GF (4x 1/10 GB SFP/SFP+) Included, 2x ICX7400-1X40GQ (1x 40 GB QSFP+ module) Included
  • AirFlow Direction : Front to Back Airflow
  • Fan Module Options : 1x ICX-FAN10-E Fan Included
  • Power Supplies Included : 1x RPS15-E 250W AC PSU Included
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,768
  • Model Number : ICX7450-48-E
  • Part Number : ICX7450-48-E
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7450-48-E 48x 1GB RJ-45 F-B Air Switch w/ 3x Exp Modules as described above
