The Ruckus Brocade ICX7450-48-E is a high-performance switch designed for enterprise networks. With 48 RJ-45 ports, this switch offers fast and reliable connectivity for your network devices.
Featuring a switching capacity of 336 Gbps and a forwarding rate of 250 Mpps, the ICX7450-48-E ensures smooth data transmission even in demanding network environments. It also provides expandability with three available expansion module slots, allowing you to customize the switch based on your specific needs.
With its MAC Address Table Size at an impressive 32,768 entries, this switch can efficiently handle large numbers of connected devices without reducing performance or stability.

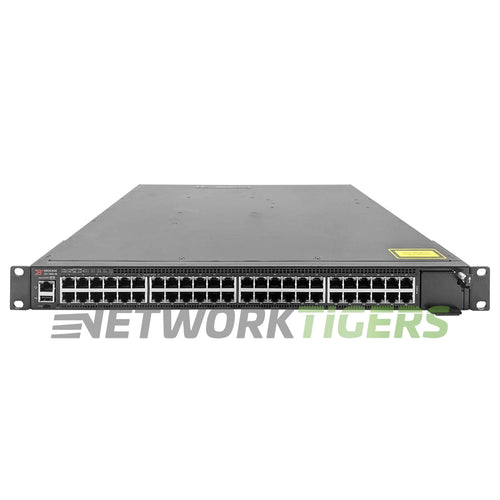

Ruckus Brocade ICX7450-48-E 48x 1GB RJ-45 F-B Air Switch w/ 3x Expansion Modules
- Network Ports : 48x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of the ICX7400-4X10GF Module)
- Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ-45 Gigabit Ethernet Management port, 1x USB port
- Stacking Ports : 2x 40 Gigabit QSFP+ Stacking/ Uplink (through the use of 2x ICX7400-1X40GQ Modules)
- Stack Members : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
- Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch)
- Module Options : 1x ICX7400-4X10GF (4x 1/10 GB SFP/SFP+) Included, 2x ICX7400-1X40GQ (1x 40 GB QSFP+ module) Included
- AirFlow Direction : Front to Back Airflow
- Fan Module Options : 1x ICX-FAN10-E Fan Included
- Power Supplies Included : 1x RPS15-E 250W AC PSU Included
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 32,768
- Model Number : ICX7450-48-E
- Part Number : ICX7450-48-E
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus Brocade ICX7450-48-E 48x 1GB RJ-45 F-B Air Switch w/ 3x Expansion Modules as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- Three (3) Network Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
