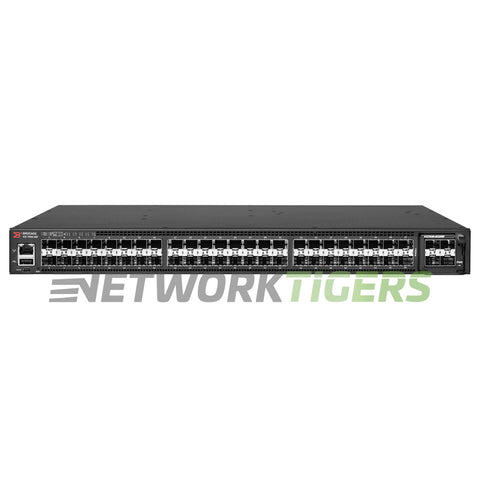

The Ruckus Brocade ICX7450-48F is a high-performance switch designed for enterprise networks. This switch offers flexibility in supporting various networking requirements, featuring 48x 1GB SFP ports and three module slots.
With a switching capacity of 336 Gbps (data rate, full duplex), the ICX7450-48F ensures fast and efficient data transfer throughout your network. The forwarding rate of 250 Mpps (data rate, full duplex) further enhances its performance capabilities.
This reliable switch provides advanced features such as VLAN support, Layer2/3 routing protocols, and Quality of Service (QoS) prioritization mechanisms to optimize traffic flow based on specific needs. The ICX7450-48F offers reliability and longevity for your network infrastructure.
Ruckus ICX7450-48F: 48-port 1 GbE switch SFP with three modular slots for optional uplink/stacking ports, power supplies, fans, and modules must be ordered separately.
- Network Ports : 48x 1 Gigabit Ethernet SFP
- Uplink Ports : See "Module Slots and Options"
- Management Ports : 1x Mini-USB Serial (Mini-B plug), Storage - USB standard-A plug
- Aggregate Stacking bandwidth : 960Gbps / 12 switches max
- Module Slots : 3x Expansion Module Slots - Modules are not included - ordered separately
- Module Options : ICX7400-4X1GF (4-port 100 Mbps/1 GbE SFP), ICX7400-4X10GF (4-port 1/10 GbE SFP/SFP+), ICX7400-4X10GC (4-port 1/10 GbE 10GBASE-T), ICX7400-1X40GQ (1-port 40 GbE QSFP+) - Not Included
- Fan Module Options : None installed. Fans ordered separately - 2x Slots | Options are ICX-FAN10-E (Front-to-Back Airflow), ICX-FAN10-I (Back-to-Front Airflow)
- Power Supplies Included : None installed. Power supplies ordered separately. 2x Slots
- Power Supply Options : RPS15-E, RPS15-I, RPS16DC-E, RPS16DC-I - Not included
- Advanced IPv4/v6 L3 routing (RIP, OSPF, BGP) : Additional license - Sold separately
- Switching Capacity : 336 Gbps (data rate, full duplex)
- Forwarding Rate : 250 Mpps (data rate, full duplex)
- Model Number : ICX7450-48F
- Part Number : ICX7450-48F
- Condition : New

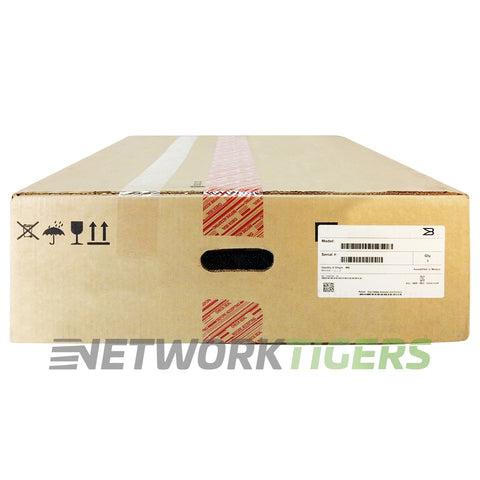

- One (1) NEW Ruckus Brocade ICX7450-48F ICX 7450 48x 1GB SFP 3x Module Slot Switch as described above
