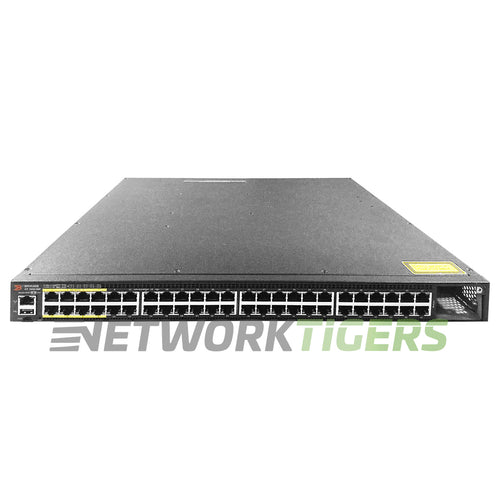

The Ruckus Brocade ICX7450-48P-E is a high-performance switch designed for businesses needing reliable and efficient network connectivity. With 48x 1GB PoE+ RJ-45 ports, this switch provides power over Ethernet capabilities to support devices such as IP phones, wireless access points, and security cameras.
Featuring 2x 40GB QSFP+ ports, the ICX7450-48P-E Front-to-back airflow switch offers increased speed and bandwidth for data-heavy applications. The PoE budget of 1500W ensures sufficient power supply to connected devices.
With a switching capacity of up to 336 Gbps and a forwarding rate of 250 Mpps (million packets per second), this switch can easily handle heavy workloads. It also boasts a large MAC Address Table Size of 32,768 addresses, making it suitable for medium-sized enterprises or organizations requiring extensive address storage.
Ruckus ICX7450-48P-E: 48-port 1 GbE switch PoE+ bundle includes 4x 10 GbE SFP+ uplinks/stacking, 2x 40 GbE QSFP+ uplinks/stacking, 1x 1,000 W AC power supply and one fan, front-to-back airflow.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+ (Uplink/ Stacking) through the use of 2x ICX7400-1X40GQ Modules - see "Module Slots and Options"
- Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x Gigabit RJ-45 Management, 1x USB
- Aggregated Stacking Bandwidth (data rate, full duplex) : 960 Gbps
- Uplink and Stacking Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ-45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module)
- Module Slots : 3x Modules Slots for Uplink/Stacking (1x Free) - 1x Module Slot on front of switch, 2x Module Slots on rear of switch
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x Fan Module Slots - 1x ICX-FAN10-E Fan Module Included
- Power Supplies Included : 2x PSU Slots - 1x RPS16-E 1000W AC Power Supply Included
- PoE Budget : 1500W
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 32,768
- Model Number : ICX7450-48P-E
- Part Number : ICX7450-48P-E
- Condition : Seller refurbished
- One (1) Seller Refurbished Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ-45 2x 40GB QSFP+ F-B Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Two (2) Network/Stacking Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
