NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2955
UPC: 783555223147

Overview

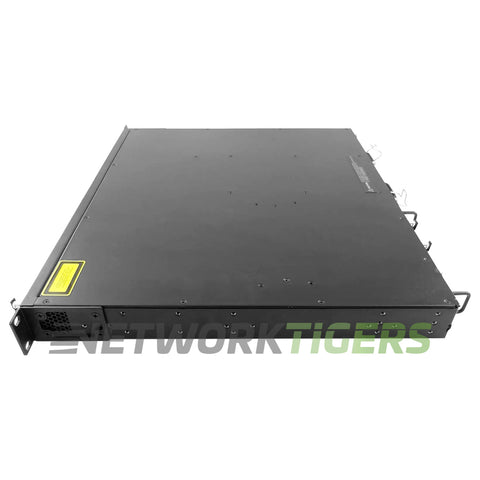

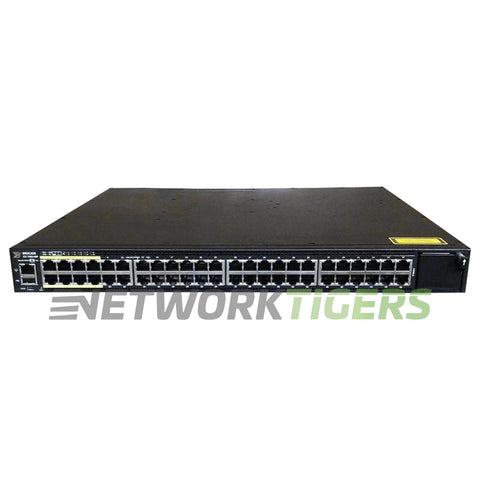

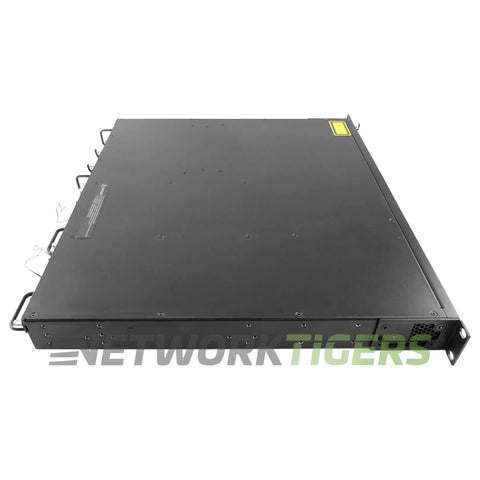

The NEW Ruckus Brocade ICX7450-48P-E is a powerful switch designed for enterprise networks. With 48 Gigabit Ethernet ports, each capable of providing PoE+ support to connected devices, this switch offers excellent flexibility in powering various network equipment such as access points and IP phones.

Equipped with two 40GB QSFP+ uplink ports, the ICX7450-48P-E ensures high-speed connectivity between switches or other networking devices. Its impressive switching capacity of 336 Gbps allows for seamless data transmission within your network infrastructure.

With a forwarding rate of 250 Mpps (million packets per second) and a MAC address table size that can accommodate up to 32,768 addresses, this switch can handle heavy loads without effecting performance or causing bottlenecks.

NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+ (Uplink/ Stacking) through the use of 2x ICX7400-1X40GQ Modules - see "Module Slots and Options"
  • Management Ports : 1x Mini-USB RS232 Serial (Mini-B plug), 1x RJ45 1 Gigabit Management, 1x USB
  • Aggregated Stacking Bandwidth (data rate, full duplex) : 960 Gbps
  • Uplink and Stacking Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module)
  • Module Slots : 3x Modules Slots for Uplink/Stacking (1x Free) - 1x Module Slot on front of switch, 2x Module Slots on rear of switch
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 2x Fan Module Slots - 1x ICX-FAN10-E Fan Module Included
  • Power Supplies Included : 2x PSU Slots - 1x RPS16-E 1000W AC Power Supply Included
  • PoE Budget : 1500W
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,768
  • Model Number : ICX7450-48P-E
  • Part Number : ICX7450-48P-E
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch as described above
