The Ruckus ICX7550-24F-E2 switch offers 24x 10GB SFP+ ports and two 40GB QSFP+ uplink interfaces. With a switching capacity of 880 Gbps, this switch can handle high volumes of traffic efficiently. The forwarding rate is impressive at 655 Mbps, ensuring fast data transmission throughout the network.
The MAC address table size varies depending on the profile used: Profile1 supports up to 16,000 entries, Profile2 supports up to 114,000 entries, and Profile3 supports up to 32, entries. With these specifications, this switch is well-suited for large-scale networks that require high-speed connectivity and reliable performance. By offering multiple port options and robust capabilities,theRuckusICX755024FE29switchis an excellent choice for organizations seeking a dependable networking solution capable of meeting their demanding requirements.

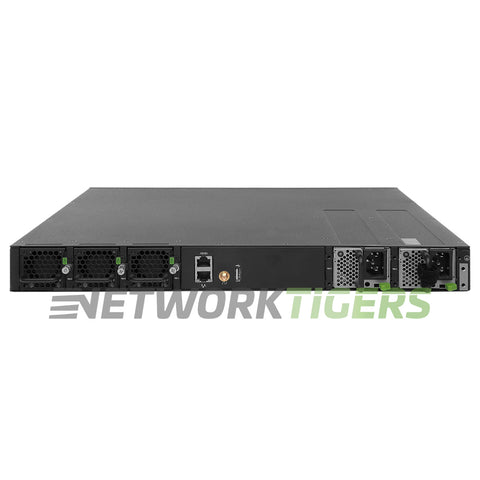

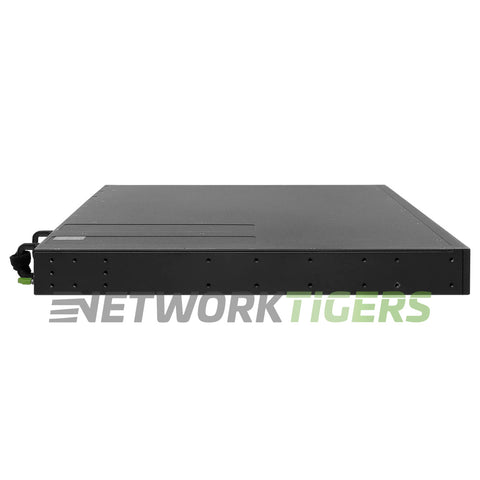

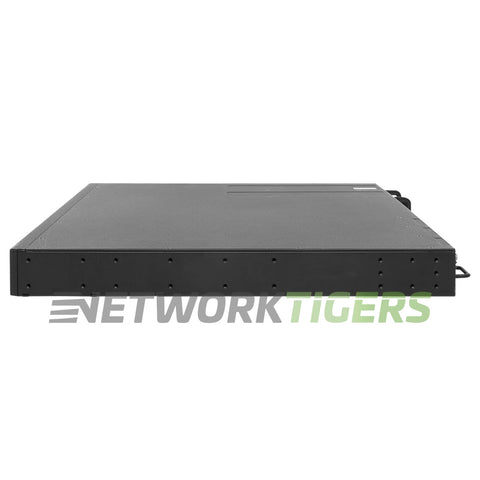

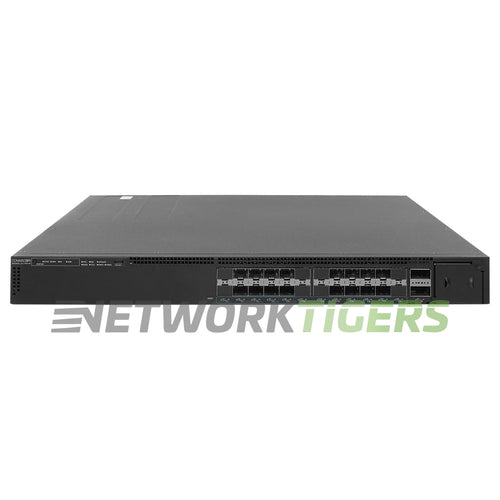

Ruckus ICX7550-24F-E2 ICX 7550 24x 10GB SFP+ 2x 40GB QSFP+ F-B Airflow Switch
- Network Ports : 24x 10 Gigabit Ethernet SFP+
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Out of Band Management RJ45, 1x USB Type C, 1x RJ45 Console, 1x USB Type A
- Stacking Ports : Uplink ports act as stacking ports.
- Stacking Density : 12 Switches
- Aggregate Stacking Bandwidth : 960 Gbps
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x ICX-FAN12-E Fan Modules Included
- Power Supplies Included : 2x 400W AC PSU's Included (RPS21-E)
- Switching Capacity : 880 Gbps
- Forwarding Rate : 655 Mpps
- MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
- Model Number : ICX7550-24F-E2
- Part Number : ICX7550-24F-E2
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7550-24F-E2 ICX 7550 24x 10GB SFP+ 2x 40GB QSFP+ F-B Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
