The Ruckus ICX7550-24ZP-E2 switch is designed for high-performance networking with 12x 2.5GB PoE+ RJ-45 ports and 12x 10GB PoE+ RJ-45 ports, and dual 100GB QSFP28 ports. The switch has a switching capacity of 700 Gbps and a forwarding rate of up to 521 Mpps.
It offers flexible module options including the ICX7650-1X100GQ (1-port 100GB), ICX7650-2X40GQ (2-port QSFP+), and ICX7650-4X10GF (4 port SFP+). With MAC address table sizes ranging from 16,000 to 114,000 entries, this switch provides reliable performance in demanding network environments.

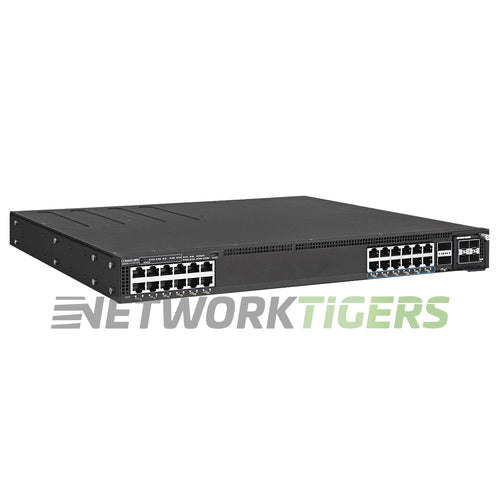

Ruckus ICX7550-24ZP-E2 12x 2.5GB PoE+ RJ-45 10GB PoE+ RJ-45 2x QSFP28 F-B Switch
- Network Ports : 12x 2.5 Gigabit Ethernet PoE+ RJ-45, 12x 10 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 2x 100 Gigabit QSFP28
- Management Ports : 1x Out of Band Management RJ-45, 1x USB Type C, 1x RJ-45 Console, 1x USB Type A
- Stacking Ports : Uplink ports act as stacking ports
- Stacking Options : Up to 12 Switches can be stacked together. Aggregate Stacking Bandwidth = 960 Gbps
- Stacking Cable Options : Various DAC cable options.
- Module Slots : 1x Expansion Module Slots - Module not included - ordered separately.
- Module Options : ICX7650-1X100GQ (1-port 100GB QSFP28), ICX7650-2X40GQ (2-port 40GB QSFP+), ICX7650-4X10GF (4-port 1/10GB SFP+)
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x ICX-FAN12-E Fan Modules Included
- Power Supplies Included : 2x RPS22-E 1200W AC PSU's Included
- PoE Budget : 1666 W (100-180V), 2000 W (180-240V)
- Switching Capacity : 700 Gbps
- Forwarding Rate : 521 Mpps
- MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
- Model Number : ICX7550-24ZP-E2
- Part Number : ICX7550-24ZP-E2
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7550-24ZP-E2 12x 2.5GB PoE+ RJ-45 10GB PoE+ RJ-45 2x QSFP28 F-B Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
