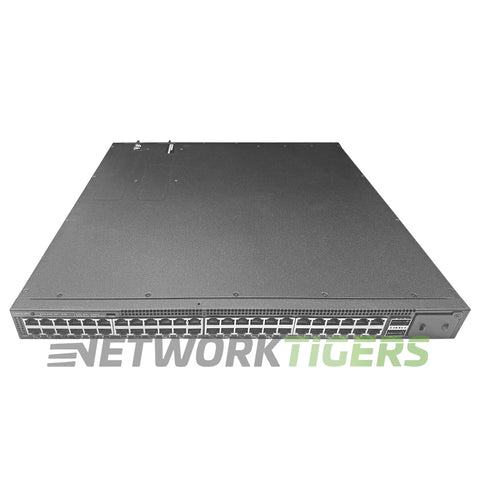

The Ruckus ICX7550-48-E2 is a high-performance switch that offers 48x 1GB RJ-45 ports and two 40GB QSFP+ uplink ports. It features front-to-back airflow, making it suitable for rack deployments.
With a switching capacity of 416 Gbps, this switch can handle large amounts of network traffic without any bottlenecks. Its forwarding rate is impressive at 309 Mpps (million packets per second), ensuring fast data transmission within your network.
The MAC Address Table Size varies depending on the profile you choose: from 16,000 to 114,000 addresses.
Ruckus ICX7550-48-E2 48x 1GB RJ-45 2x 40GB QSFP+ Front-to-Back Airflow Switch
- Network Ports : 48x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Out of Band Management RJ-45, 1x USB Type C, 1x RJ-45 Console, 1x USB Type A
- Stacking Ports : Uplink ports act as stacking ports.
- Stacking Density : 12 Switches
- Aggregate Stacking Bandwidth : 960 Gbps
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x ICX-FAN12-E Fan Modules Included
- Power Supplies Included : 2x 400W AC PSU's Included (RPS21-E)
- Switching Capacity : 416 Gbps
- Forwarding Rate : 309 Mpps
- MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
- Model Number : ICX7550-48-E2
- Part Number : ICX7550-48-E2
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7550-48-E2 48x 1GB RJ-45 2x 40GB QSFP+ Front-to-Back Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
