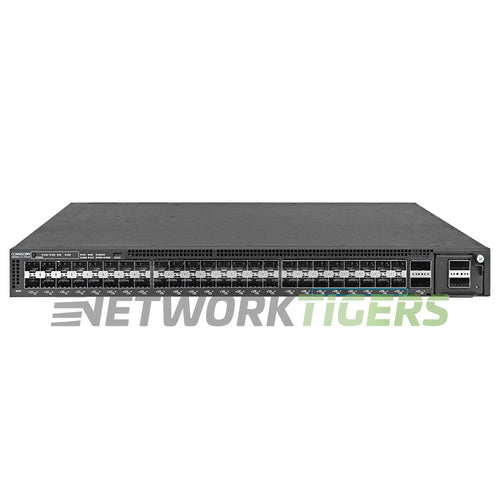

Ruckus ICX7550-48F-E2 36x 1GB SFP 12x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch

Ruckus ICX7550-48F-E2 36x 1GB SFP 12x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7426

Overview

The Ruckus ICX7550-48F-E2 switch offers 36x 1GbE SFP, 12x 10GbE SFP+, and 2x 100Gb QSFP28 ports. Three ICX-FAN12-E fan modules provide front-to-back airflow for cooling efficiency. Two included RPS21-E power supplies deliver 800W redundancy to support critical operations.

Designed for scalability, the unit promotes fiber-based aggregation with high-bandwidth uplinks suitable for growing network demands. The modular design allows customization through expansion options while maintaining consistent airflow direction across installed components.

This model balances port density, bandwidth flexibility, and redundancy in enterprise applications requiring reliable performance over fiber connectivity solutions.

Ruckus ICX7550-48F-E2 36x 1GB SFP 12x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch


Specifications

  • Network Ports : 36x 1 Gigabit Ethernet SFP, 12x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 2x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Out of Band Management RJ45, 1x USB Type C, 1x RJ45 Console, 1x USB Type A
  • Stacking Ports : Uplink ports act as stacking ports.
  • Stacking Density : 12 Switches
  • Aggregate Stacking Bandwidth : 960 Gbps
  • Fan Module Options : 3x ICX-FAN12-E Fan Modules Included - Front-to-Back Airflow
  • Power Supplies Included : 2x 400W AC PSU's Included (RPS21-E) Front-to-Back Airflow
  • VLAN's : 4095
  • Switching Capacity : 912 Gbps
  • Forwarding Rate : 678 Mpps
  • MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
  • Packet Buffer : 8MB
  • DRAM and Flash : 4GB DRAM, 4GB Flash
  • Model Number : ICX7550-48F-E2
  • Part Number : ICX7550-48F-E2
  • Condition : Seller refurbished

Datasheet

More information on this Ruckus ICX7550-48F-E2.

Included

  • One (1) Seller refurbished Ruckus ICX7550-48F-E2 36x 1GB SFP 12x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
